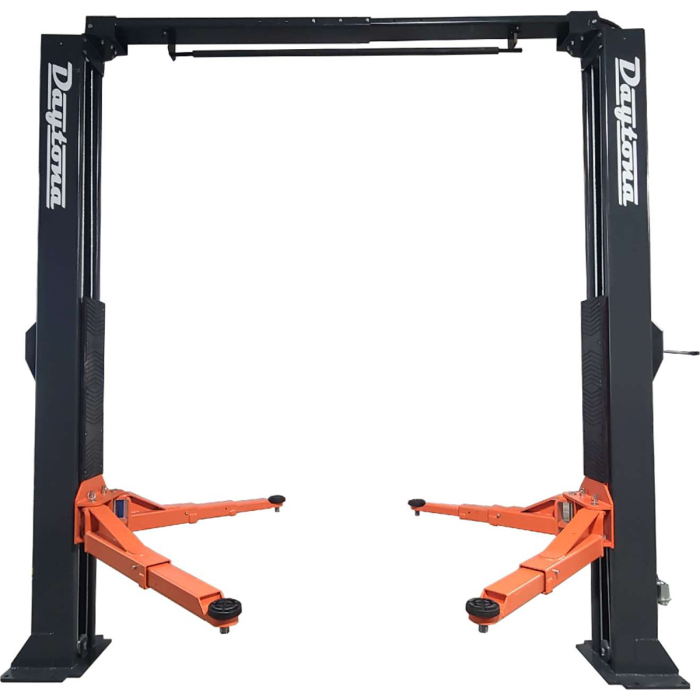

Daytona LTPA10 10,000 LBS 2-Post Adjustable Lift
The LTPA10 is a premium, highly versatile 2 post automotive lift engineered to accommodate a wide range of vehicles. Featuring a robust dual direct-drive cylinder system, three adjustable width settings, and a single-point automatic safety lock, this lift delivers exceptional reliability, safety, and operational ease for both professional automotive shops and dedicated enthusiasts.
Product Highlights
- Professional-grade 2 post automotive lift design
- Automatic safety locks, with single point lock
- Dual direct drive cylinders with cable equalization
- Three stage front arms & screw up pads
Power Requirements
240V / 3HP / 13A PH1/ 60Hz
| Specification | Measurement |
|---|---|
| Overall Height (to top of post) | 141.6" (not including optional 2' extension) |
| Outer width from post base outsides | 126.8" / 132.7" / 138.6" |
| Outer width from posts outsides | 118.9" / 124.8" / 130.7" |
| Inner width between posts | 100.8" / 106.7" / 112.6" |
| Drive-Through Clearance | 88.6" / 94.5" / 100.4" |
| Overhead clearance (under top bar) | 134.2" |
| Clearance under arm at full height | 70.9" |
| Minimum clearance height of arms in down position | 4.5" |
| Control Box / Switch Height | 67.9" |
| Post base width | 15.7" |
| Post width | 9.1" |
| Safety cover with handle requires | 12" of space to operate |
| Shipping Dimensions: Lift | 145" x 30" x 26" / 1700lbs |
| Shipping Dimensions: Pump | 31" x 12" x 11" / 60lbs |
| Shipping Dimensions: Optional Height Kit | 30" x 15" x 11" / 165lbs |
3 Width Settings
- Narrow Width:Drive Through - 88.6"
- Medium Width:Drive Through - 94.5"
- Wide Width:Drive Through - 100.4"
SHIPPING DIMENSIONS
Lift: 145" x 30" x 26" (1700 lbs)
Pump: 31" x 12" x 11" (60 lbs)
Opt. Height Kit: 30" x 15" x 11" (165 lbs)
Download Blueprints
FAQ
What is the minimum ceiling height required for the LTPA10?
The standard minimum ceiling height is 144 inches (12 feet). If you choose to install the optional 2ft height extension kit, the required ceiling height increases to 168 inches (14 feet).
Does this lift come with truck adapters?
Yes, truck adapters are included as standard equipment with every LTPA10 2-post lift to ensure you can safely lift larger vehicles immediately after installation.
What are the concrete requirements for the floor?
For safe operation, the lift must be installed on a minimum of 6 inches of 4000 PSI concrete. We suggest replacing defective concrete with a 48" x 48" x 6" pad under each post if the existing floor does not meet these specs.
Is the 2ft Height Extension Kit included?
No, the 2ft Height Extension Kit is sold separately. It is a popular option for shops with high ceilings that need to service taller vehicles or vans.
What does "Adjustable Width" mean?
The LTPA10 features three distinct width settings (Narrow, Medium, and Wide). This allows you to customize the drive-through clearance from 88.6" to 100.4" depending on your shop's floor space and the vehicles you service.
