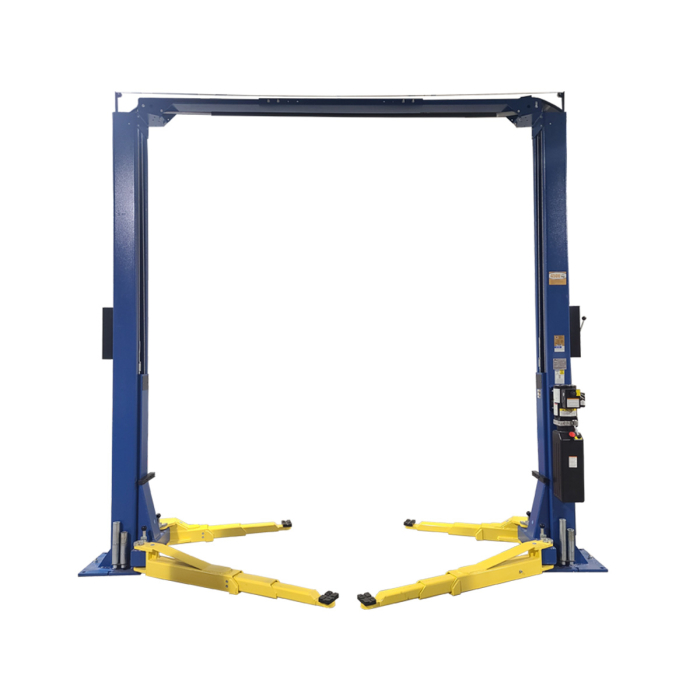

Daytona BR10-2OH-33 10,000 LBS 2-Post Overhead Lift
ALI Certified • Dual Direct-Drive • 3-Stage Arms
Engineered for professional automotive shops, this 10,000 lb capacity 2-post overhead lift features dual direct-drive cylinders and a versatile 3-stage arm design. Proudly ALI Certified to guarantee maximum safety, performance, and reliability.
- Advanced Safety Systems: Automatic locks with single-point release
- Dual Direct Drive Hydraulics: Robust cylinders for smooth, powerful lifting
- Versatile Arm Design: Compact 3-stage arms for asymmetric & symmetric lifting
- Comprehensive Accessories: Includes drop-in pads and 1.5", 3" & 6" extensions
- ALI CERTIFIED: Independently tested and validated for safety.
- Automatic safety locks with single-point release system.
- Dual direct-drive hydraulic cylinders for smooth performance.
- 3-stage front and rear arm design for versatile vehicle spotting.
- Matte powder coat finish for strength and durability.
- Includes 1.5", 3" & 6" height extensions and drop-in pads.
Power Requirements
240V / 3HP / 12A / 1PH / 60Hz
Adjustable Width Settings
- Narrow: 140.43" Overall
- Medium: 146.34" Overall
- Wide: 152.24" Overall
| Specification | Measurement |
|---|---|
| Lifting Capacity | 10,000 lbs |
| Overall Height | 144.5" |
| Clearance Under Arm | 70" |
| Min Pad Height | 4" |
| Vehicle Clearance (Arms) | 113" |
| Post Dimensions | 7" x 12" |
| Shipping Weight (Main) | 2,100 lbs |
Download Blueprints
FAQ
Is the BR10-20H-33 ALI Certified?
Yes, the BR10-20H-33 is proudly ALI Certified, having been independently tested and validated to meet industry safety and performance standards.
What are the adjustable width settings?
The lift features three adjustable width settings: Narrow (140.43"), Medium (146.34"), and Wide (152.24") to accommodate different shop layouts and vehicle sizes.
What accessories are included with the lift?
The lift includes two-stage drop-in pads and a complete set of height extensions (1.5", 3", and 6") as standard equipment.
