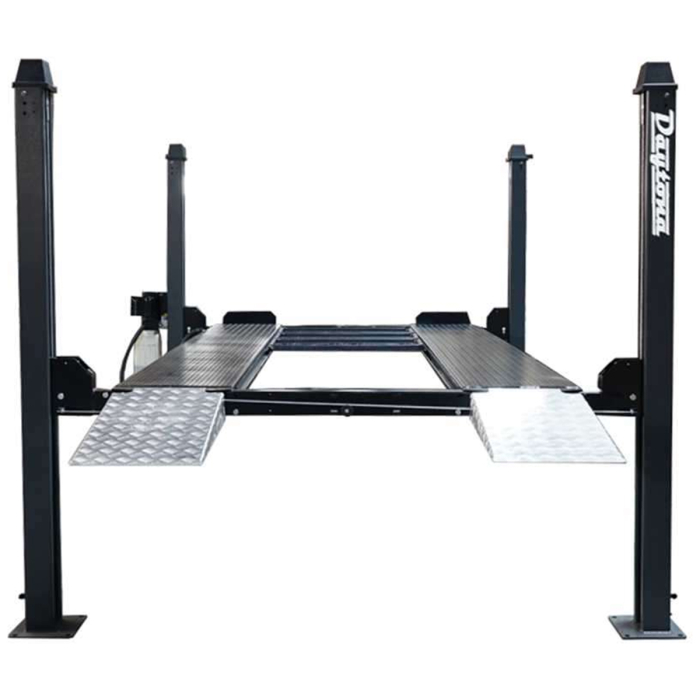

Daytona LFPP10 10,000 LBS 4-Post Lift
Store heavier vehicles safely with the Daytona LFPP10 10,000 LBS parking lift. A premium 4 post car lift built for reliable vehicle storage with advanced safety features and heavy-duty construction.
- Four mechanical locks with primary & secondary safety
- Single point manual safety release
- Large 3.5" heavy duty cylinder with aircraft cables
- Removable aluminum approach ramps included
Power Requirements
120V / 1.5HP / 26Amp / 1PH / 60Hz
| Specification | Measurement |
|---|---|
| Lift Dimensions | 191" x 26" x 34" |
| Shipping Weight | 2500 lbs (pump included) |
| Optional Wheel Kit | 40" x 24" x 10" (120 lbs) |
RUNWAY SPECIFICATIONS
Runway Dimensions: 18.70" Width x 181.89" Length
SHIPPING INFORMATION
Lift Dimensions: 191" x 26" x 34"
Shipping Weight: 2,500 Ibs Pump: Attached to lift. Included in dimensions.
Optional Wheel Kit: 40" x 24" x 10" (120 Ibs)
Download Blueprints
FAQ
What are the power requirements for the LFPP10?
The LFPP10 requires a standard 120V, 1.5HP, 26Amp, 1PH, 60Hz power supply.
What are the dimensions and shipping weight?
Lift dimensions: 191" x 26" x 34", Shipping weight: 2500 lbs (pump included). Optional wheel kit: 40" x 24" x 10", 120 lbs.
What safety features are included?
Four mechanical locking devices with primary and secondary safety locks, plus single point manual safety release.
| Weight Capacity | 10,000 lb |
|---|
