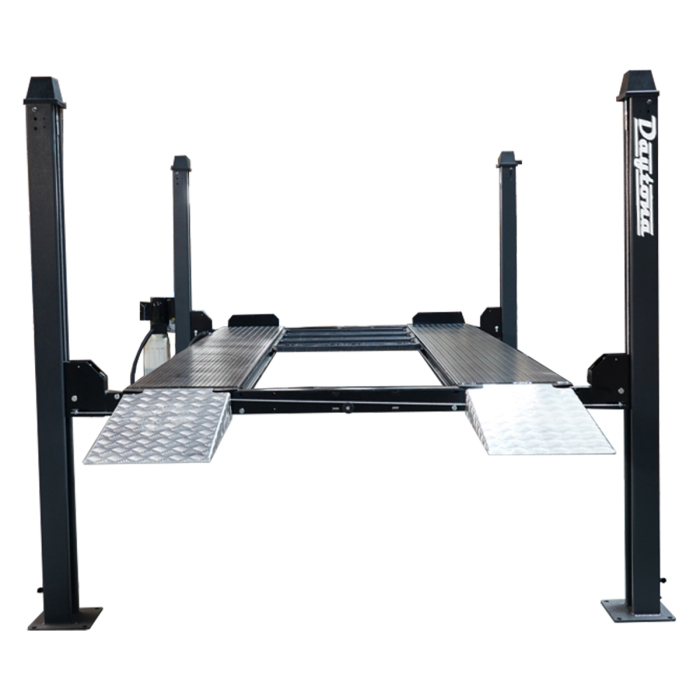

Daytona LFPP10-XLT 10,000 LBS 4-Post Parking Lift
The LFPP10-XLT is engineered for users requiring additional length and height for parking and storage. Featuring an advanced locking system, removable aluminum approach ramps, and a massive 85" clearance, it is the perfect solution for stacking large SUVs or long-wheelbase vehicles.
- Advanced Locking System with primary and secondary safety locks
- Single point manual safety release for convenient operation
- Large heavy duty 3.5" cylinder with aircraft quality cables
- Includes 1 steel tool tray and 3 plastic drip trays
Power Requirements
120V / 1.5HP / 26Amp / 1PH / 60Hz
| Specification | Measurement |
|---|---|
| Overall Length | 245.0" (6224mm) |
| Overall Width | 122.0" (3099mm) |
| Overall Height | 105.2" (2672mm) |
| Max Clearance | 85.0" (Under Runway) |
| Shipping Weight | 2,700 lbs |
| Optional Wheel Kit | 40" x 24" x 10" (120 lbs) |
Runway Specs
- Width:18.6"
- Length:196.9"
SHIPPING INFORMATION
Lift Dimensions: 207" x 22" x 33"
Shipping Weight: 2,700 lbs
Pump: Attached to lift. Included in dimensions.
Optional Wheel Kit: 40" x 24" x 10" (120 lbs)
Download Blueprints
FAQ
What are the power requirements for the LFPP10-XLT?
The LFPP10-XLT requires a standard 120V, 1.5HP, 26Amp, 1PH, 60Hz power supply.
What accessories are included with the lift?
The lift comes standard with 1 steel tool tray and 3 plastic drip trays. Aluminum approach ramps are also included.
What is the maximum clearance height?
The LFPP10-XLT provides a maximum clearance of 85.0 inches under the runway, making it ideal for tall vehicles or stacking.
