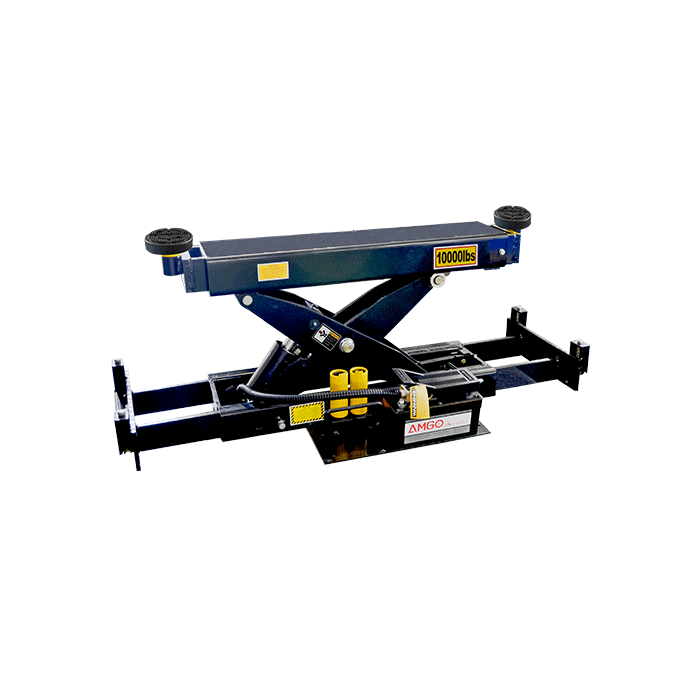

AMGO 10K ROLLING BRIDGE JACK, PNEUMATIC HYDRAULIC PUMP
10,000-lb. Capacity/Pneumatic Pump
RJ-10A incorporates a heavy-duty structure and boasts 10000lbs capacity. It’s particularly ideal to use with a 4-post or scissors lift with capacity exceeding 18,000lbs. Made to high-quality standards, RJ-10A is a typical AMGO product that representing reliable performance, great longevity and safety as the utmost priority.
Click to download Product Manual
Features
- Equipped with pneumatic hydraulic pump;
- Strengthened solid steel-frame scissor ensures the Jack is strongestenough to perform more stable service work;
- Whole set of 2.5”,5” extension adapters and super-durable rubber pads assy;
- Extendable long-reach arms for for easy positioning and adjustability;
- Easy-to-operation manual safety lock with two locking positions makes operators access to work convenient and comfortable;
- Adjustable lower sliding Assy. fits a width of 36” to 56 1/2” between runways;
- Ergonomically guardrail protects the oil hose, and makes moving the Jack easy.
Specifications
| Model | RJ-10A | |
|---|---|---|
| Lifting Capacity | 10,000 Ibs | |
| Lifting Time | 50s | |
| Arm Pads Reach | A | 34 5/8" - 62 3/8" |
| Min. Height | B | 11" |
| Support Base Width | C | 36" - 56 1/2" |
| Min Rubber Pad Height | D | 11 3/16" |
| Max. Lifting Height (Without adapters) | E | 21 1/2" |
| Max. Lifting Height (With adapters) | 29" | |
| Overall Width | F | 21 3/4" |
| Air Pressure | 0.8Mpa | |
| Gross Weight | 467 lbs | |
| Pump | Pneumatic Pump |
Detailed Image
Excellent quality pneumatic hydraulic pump matched with a high working pressure oil hose. Includes a customized special bracket for adapter storage
Patented float rolling device allows the jack to move smoothly on the rail while sitting stably in the groove when lifting a vehicle.
Simple-to-operate manual safety lock allows access to multiple lock positions for a comfortable working height
Adjustable width makes this suitable for virtually all the four post & scissor lifts.
Ergonomic guardrail helps move the jack easily
Stackable rubber pads assembly with 2.5", 5" extension adapters.
Shipping Information
Single unit/package, packing measurement (LxWxH) : 42 1/8" x 22 13/16" x 16 3/4"
5 units/package, packing measurement (LxWxH) : 42 1/8" x 22 13/16" x 77 15/16"
AMGO 5-3-2 Warranty: Industry-leading Service
AMGO Hydraulic Corporation offers one of the best warranties in the business with warranties as follows:
1. Steel Structure Components, Warranty for 5 Years;
2. Hydraulic Parts, Warranty for Three 3 Years:
3. Other Parts, electrical components, power unit, Warranty for 2 Years.
For detail warranty policy, please check here.
https://amgohyd.com/warranty-return-policy
