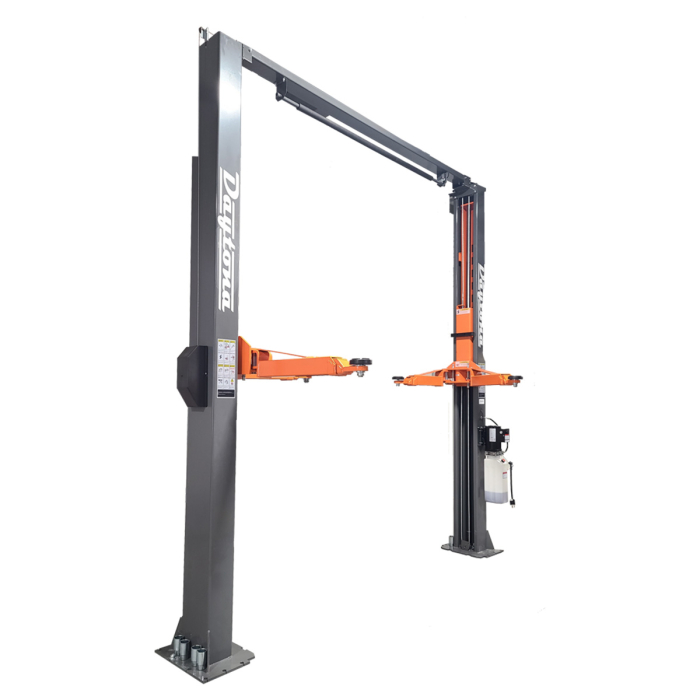

Daytona LTPA12 12,000 LBS 2-Post Adjustable Lift
Engineered for commercial auto repair facilities demanding reliability and heavy-duty lifting power. Features dual direct drive hydraulic cylinders with cable equalization, automatic safety locks, and three adjustable width settings (107" / 113" / 119") to accommodate a wide range of vehicles from passenger cars to heavy trucks.
- Dual direct drive hydraulic cylinders with cable equalization
- Automatic safety locks with single point lock release system
- Three stage front arms and rear arms with truck adapters standard
- 3 adjustable width settings: 107" / 113" / 119" drive-through
Power Requirements
240V / 3HP / 13A / PH1 / 60Hz
| Specification | Measurement |
|---|---|
| Overall Width (Narrow / Wide) | 150.3" / 162.1" |
| Overall Height | 141.7" [3598mm] |
| Column Height | 135.0" [3430mm] |
| Arm Reach | 66.5" [1689mm] |
| Arm Range (Min / Max) | 3.9" – 68.9" |
| Base Width | 18.7" [475mm] |
| Column Depth | 9.4" [240mm] |
| Side Profile Height | 59.7" [1517mm] |
| Side Profile Depth | 20.9" [530mm] |
| Shipping (Lift) | 138" x 22" x 41" | 2,400 lbs |
| Shipping (Pump) | 31" x 11" x 12" | 60 lbs |
| Shipping (Opt. Height Kit) | 32" x 15" x 18" | 210 lbs |
3 Width Settings
- Narrow:107"
- Medium:113"
- Widest:119"
Shipping Information
Lift: 138" x 22" x 41" | 2,400 lbs
Pump: 31" x 11" x 12" | 60 lbs
Optional Height Kit: 32" x 15" x 18" | 210 lbs
Download Blueprints
FAQ
What is the lifting capacity of the LTPA12?
The LTPA12 has a maximum lifting capacity of 12,000 lbs, suitable for passenger cars, SUVs, and trucks.
What width settings does the LTPA12 offer?
The LTPA12 offers 3 adjustable width settings: Narrow drive-through width of 107", Medium of 113", and Widest of 119". The overall width changes from 150.3" to 163" depending on the setting.
Is there an optional height extension available?
Yes, an optional 2ft Height Extension Kit is available (sold separately). It adds 2 feet of clearance under the overhead bar. Shipping dimensions for the kit are 32" x 15" x 18" at 210 lbs.
What power supply does the LTPA12 require?
The LTPA12 requires a 240V, 3HP, 13 Amp, single phase (PH1), 60Hz power supply.
What safety features are included?
The LTPA12 includes automatic safety locks with a single point lock release system, a height limit switch, high polymer polyethylene wear resistant slide blocks, and full length rubber door guards.
