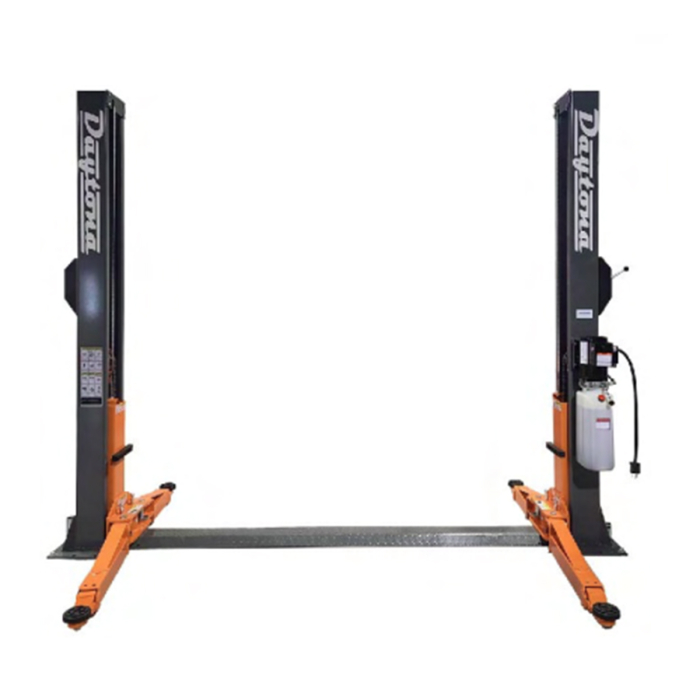

Daytona LTPF12 12,000 LBS 2-Post Lift
The LTPF12 is a robust 12,000 lb capacity 2-post floorplate lift designed for heavy-duty automotive and light truck servicing, especially in shops with lower ceiling clearances. Featuring automatic safety locks with a single-point release, and dual chain-drive hydraulic cylinders, it delivers reliable performance for professional garages.
- Automatic safety locks with single point lock release system
- Dual chain drive hydraulic cylinders
- Three stage front arms with screw up pads included
Power Requirements
240V / 3HP / 13 Amp / 1 Ph / 60Hz
| Specification | Measurement |
|---|---|
| Lifting Capacity | 12,000 lbs |
| Overall Height | 114.0" |
| Overall Width | 146.1" |
| Lifting Height | 4.33" ~ 74.80" |
| Shipping Weight (Lift) | 2200 lbs |
| Power Unit Weight | 60 lbs |
| Power Unit Motor Box | 31" x 11" x 12" |
SHIPPING INFORMATION
Lift Unit: 116" x 22" x 39" (2200 lbs)
Pump Unit: 31" x 12" x 11" (60 lbs)
Download Blueprints
FAQ
What is the lifting capacity of the LTPF12?
The LTPF12 has a maximum lifting capacity of 12,000 lbs, making it suitable for heavy-duty trucks and commercial vehicles.
What ceiling height is required for this lift?
The LTPF12 features a floorplate design with an overall column height of 114 inches. Because there is no overhead crossbar, it is ideal for shops with lower ceiling clearances.
Does the LTPF12 come with truck adapters?
Yes, standard truck adapters and screw-up pads are included with the LTPF12 to accommodate a wide range of vehicle frames.
What are the power requirements?
The unit requires 240V, 3HP, 13A, Single Phase (PH1), 60Hz power supply.
