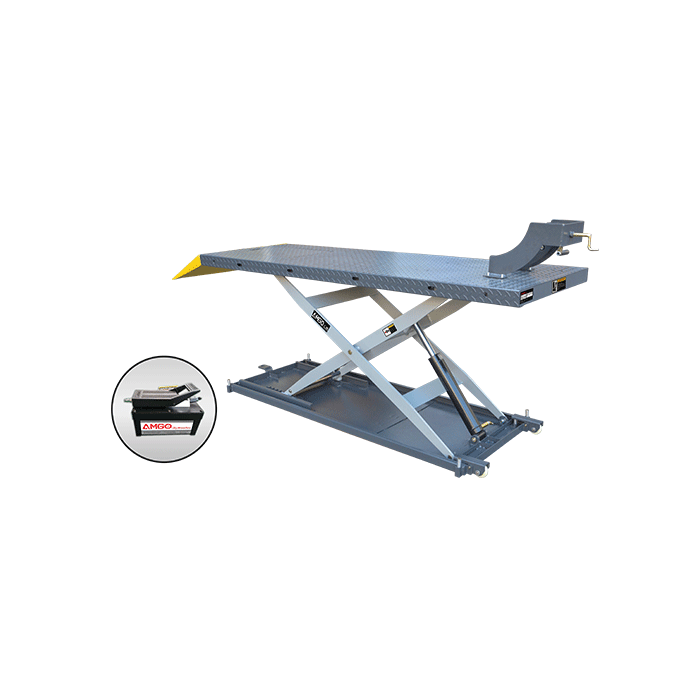

AMGO 1200 LB MOTORCYCLE & ATV LIFT, PNEUMATIC HYDRAULIC PUMP
The MC-1200P has the same steel construction as the MC-1200 model, but uses a pneumatic hydraulic pump as its power source instead of electrical power. This design improves mobility which allows the unit to be wheeled conveniently to any job site for rapid servicing.
Click to download Product Manual
Features
• Powered by AMGO pneumatic pump;
• AMGO’s patented design safety device has an automatic activation lock with manual release;
• Non-skid diamond platform enhances the stability;
• Professional grade hydraulic cylinders use premium oil seals;
• Removable rear tire cover plate and tool tray come standard;
• Optional tie kits, lifting jack, and length/width extension kits are available.
Specifications
| Model | MC-1200P | |
|---|---|---|
| Lifting Capacity | 1,200 Ibs | |
| Lifting Time | 23s | |
| Max. Lifting Height | A | 42 15/16" |
| Max. Lock Height | 40 9/16" | |
| Minimum Height | 6 1/8" | |
| Overall Length (Inc. Ramp) | B | 106 5/16" |
| Runway Length | C | 88 9/16" |
| Overall Width | D | 29 1/2" |
| Gross Weight | 531 lbs | |
| Air Pressure | 0.6 MPa |
Detailed Image
Adjustable wheel vise to accommodate various wheels. Two installation positions to fit for different wheelbases.
Powered by AMGO pneumatic pump;.
Removable rear cover plate for easy wheel replacement.
AMGO's patented design safety device: automatic activation lock with manual release.
Portable design can easily roll into any service bay.
Optional width extension kit . Adds 23 5/8" in width on platform for three or four-wheel motorcycle. Kits No.: MC001
Optional length extension kits no.MC002, adds 15 3/4” in length that suitable for long wheelbases.
Optional sliding jack MC005, lifting capacity: 500lbs.
Optional tie kits no.MC006.
Shipping Information
8 units/package, packing measurement (LxWxH) : 89 3/4"x29 7/8"x80 1/8"
1 units/package, packing measurement (LxWxH) : 89 3/4”x29 7/8"x12 5/8""
Attention to forklift loading and unloading
AMGO 5-3-2 Warranty: Industry-leading Service
AMGO Hydraulic Corporation offers one of the best warranties in the business with warranties as follows:
1. Steel Structure Components, Warranty for 5 Years;
2. Hydraulic Parts, Warranty for Three 3 Years:
3. Other Parts, electrical components, power unit, Warranty for 2 Years.
For detail warranty policy, please check here.
https://amgohyd.com/warranty-return-policy
