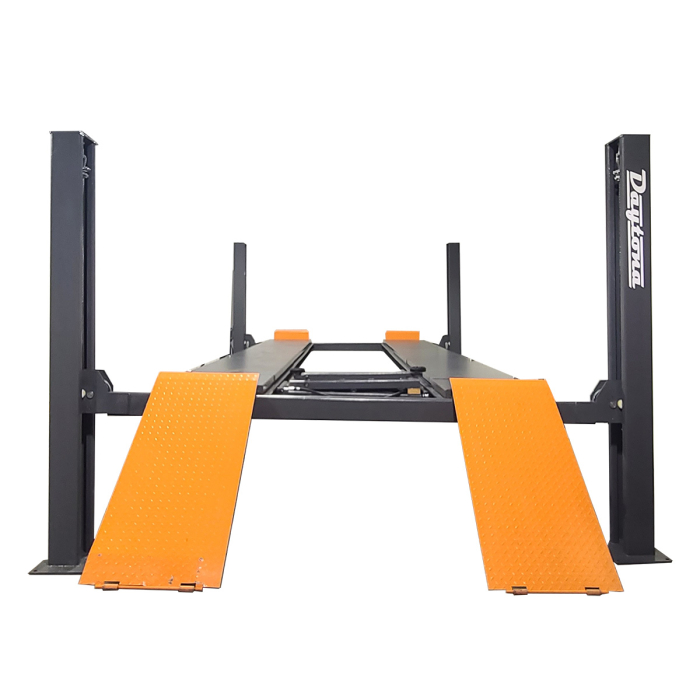

Daytona LFPA14 14,000 LBS 4-Post Alignment Lift
Engineered for commercial auto repair facilities demanding precision and heavy-duty lifting. Features built-in slip plates, adjustable turntables, and an ultra-wide runway to accommodate a vast range of vehicles, including dual rear wheel pickup trucks.
- Ladder Lock System: Manual release with locking positions every 3.5"
- Industrial Grade Finish: Matte powder coat in dark Grey for lasting durability
- High Visibility: Tilting approach ramps in bright Orange
- Heavy Duty Components: 5" cylinder and aircraft-quality lifting cables
Power Requirements
240V / 4HP / 15Amp / 1 Ph / 60Hz
| Specification | Measurement |
|---|---|
| Overall Length | 268.7" |
| Overall Width | 153.9" |
| Overall Height | 94.3" |
| Clearance (Full Height) | 69.3" (Under Runway) |
| Shipping Weight | 5,400 lbs |
| Shipping Dimensions | 247" x 32" x 42" |
RUNWAY SPECIFICATIONS
Runway Dimensions: 25.6" Width x 247.5" Length
Inner Width: 43.7" (between runways)
SHIPPING INFORMATION
Lift Dimensions: 247" x 32" x 42"
Shipping Weight: 5,400 lbs
Pump: Attached to lift. Included in dimensions.
Download Blueprints
FAQ
What is the lifting capacity of the LFPA14?
The LFPA14 has a heavy-duty lifting capacity of 14,000 lbs, making it suitable for a wide range of vehicles including dually pickup trucks.
Are the turntables and slip plates included?
Yes, built-in slip plates and adjustable turntables are included as standard features for precision alignment work.
What are the power requirements for this lift?
The lift requires 240V, 4 HP, 15 Amp, 1 Phase, 60Hz power supply.
