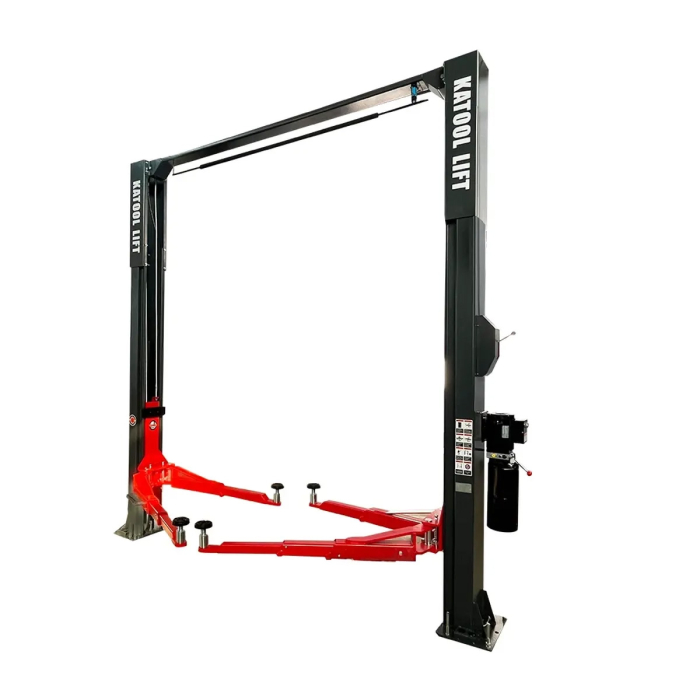

KATOOL KT-M140XD 14,000 lb 2-Post Overhead Car Lift
Commercial-Grade Clear-Floor Lift for Trucks, Vans & Fleet Vehicles
The KATOOL KT-M140XD is a heavy-duty 2-post overhead lift engineered for professional shops handling larger vehicles and high daily workloads. With a 14,000 lb lifting capacity, direct-drive system, and reinforced column design, this lift delivers smooth, stable, and reliable performance for trucks, vans, and SUVs.
The overhead clear-floor design maximizes workspace efficiency while maintaining structural strength—making it ideal for busy service bays and fleet operations.
Key Features
- 14,000 lb Heavy-Duty Capacity — Built to handle full-size trucks, commercial vans, and fleet vehicles with confidence.
- Overhead Clear-Floor Design — Unobstructed floor space allows easy movement of tools, jacks, and equipment.
- Direct-Drive System (No Chain) — Smoother, quieter operation with fewer moving parts—reducing maintenance and extending service life.
- Single-Point Lock Release — All safety locks disengage simultaneously from one control point for safer, more efficient operation.
- Dual S-Column Reinforced Design — Engineered to reduce column flex under load, improving structural integrity and long-term durability.
- Symmetric Lifting Arms — Balanced lifting and adjustable positioning for a wide range of vehicle types.
- Industrial-Grade Steel Construction — Precision-welded columns and reinforced load ensure maximum strength in high-volume environments.
Specifications
| Feature | Specification |
| Lifting Capacity | 14,000 lbs |
| Max Lifting Height | 73″ (1800 mm) |
| Overall Height | 167″ |
| Overall Width | 158″ |
| Drive-Thru Clearance | 133″ |
| Motor Power | 4 HP |
| Power Supply | 220V / 1 Phase |
| Material | Alloy Steel |
| Net Weight | 2,050 lbs (930 kg) |
| Shipping Weight | 1,960 lbs |
Understanding Two-Post Lift Weight Capacities
Two-post lifts are essential in automotive shops, but selecting the appropriate lift with the correct weight capacity is crucial for safety and equipment longevity.
Typical Weight Capacities
Two-post lifts generally have weight capacities ranging from 7,000 to 20,000 pounds, accommodating various vehicles from light-duty cars to heavy-duty trucks. It's important to note that each lift arm also has its own weight limit. For instance, a lift with a 10,000-pound total capacity may have each arm rated for 2,500 pounds. Therefore, if a vehicle's weight distribution exceeds this per-arm limit, the lift may not be suitable.
Calculating Required Lift Capacity
To determine the appropriate lift capacity:
- Calculate Rear Axle Weight: Multiply the vehicle's total weight by the distance from the center of gravity to the front axle, then divide by the wheelbase.
- Calculate Front Axle Weight: Subtract the rear axle weight from the total vehicle weight.
- Determine Arm Capacity: Divide each axle's weight by two to find the load per arm.
