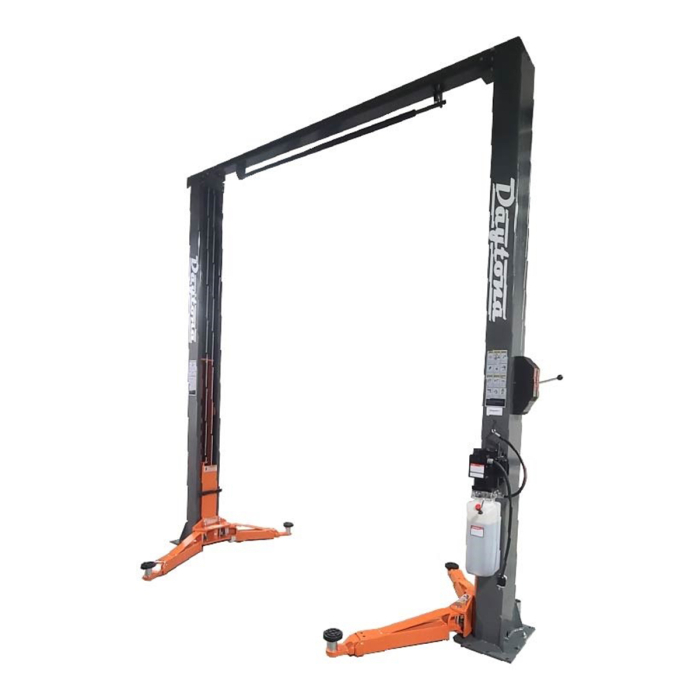

Daytona LTPO15 15,000 LBS 2-Post Overhead Lift
The LTPO15 is a heavy-duty 15,000 lb capacity 2-post overhead lift designed for larger vehicles and commercial fleets. Featuring dual direct drive hydraulic cylinders and automatic safety locks, it delivers maximum lifting power and stability.
Please Note: 2ft Height Extension Kit comes WITH this lift. The lift MUST be assembled with the height kit.
- 15,000 lbs lifting capacity maintained with arms fully extended
- Dual direct drive Hydraulic cylinders
- Three stage front arms and rear arms
Power Requirements
240V / 3HP / 13 Amp / 1 Ph / 60Hz
| Specification | Measurement |
|---|---|
| Lifting Capacity | 15,000 lbs |
| Overall Height (w/ Extension) | 176.8" [4489mm] |
| Overall Width | 152.8" [3880mm] |
| Lifting Height | 3.9" ~ 74.8" |
| Shipping Weight (Lift) | 2700 lbs |
| Shipping Dimensions | 278" x 33" x 65" |
SHIPPING INFORMATION
Lift Unit: 155" x 25" x 40" (2700 lbs)
Pump Unit: 31" x 11" x 12" (60 lbs)
Optional Height Kit: 26" x 12" x 18" (200 lbs)
Download Blueprints
FAQ
Does the LTPO15 include a height extension kit?
Yes, the LTPO15 comes standard with a 2ft height extension kit. The lift must be assembled with this kit installed as the cables and hoses are sized specifically for this configuration.
What is the lifting capacity of the LTPO15?
The LTPO15 has a maximum lifting capacity of 15,000 lbs, which is maintained even when the arms are fully extended.
What are the power requirements?
The unit requires a 240V, 3HP, 13 Amp, Single Phase (PH1), 60Hz power supply.
