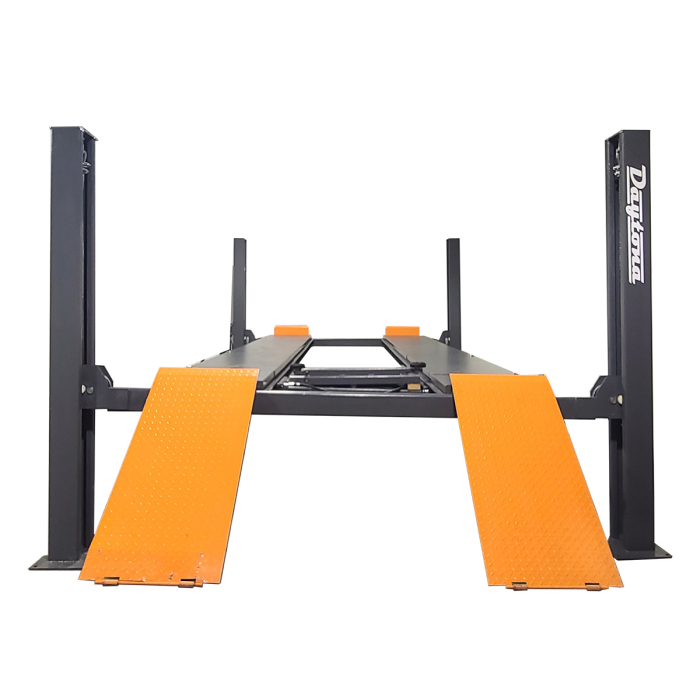

Daytona LFPA24 24,000 LBS 4-Post Alignment Lift
The LFPA24 is designed for commercial facilities demanding extreme lifting power and precision. Featuring built-in slip plates, adjustable turntables, and an ultra-wide runway, it is the ultimate solution for heavy-duty fleet maintenance and large-scale alignment tasks.
- Massive 24,000 lbs Lifting Capacity for commercial fleets
- Ladder lock system with manual release (positions every 3.5")
- Built-in slip plates and adjustable turntables included
- High-visibility bright Orange tilting approach ramps
Power Requirements
240V / 4HP / 15Amp / 1 Ph / 60Hz
| Specification | Measurement |
|---|---|
| Overall Length | 330.5" |
| Overall Width | 155.1" |
| Overall Height | 87.9" |
| Clearance (Full Height) | 69.3" (Under Runway) |
| Shipping Weight | 7,800 lbs |
| Shipping Dimensions | 278" x 33" x 65" |
RUNWAY SPECIFICATIONS
Runway Dimensions: 25.6" Width x 284.6" Length
Inner Width: 43.7" (between runways)
SHIPPING INFORMATION
Lift Dimensions: 278" x 33" x 65"
Shipping Weight: 7,800 lbs
Pump: Attached to lift. Included in dimensions.
Download Blueprints
FAQ
What is the lifting capacity of the LFPA24?
The LFPA24 has a massive lifting capacity of 24,000 lbs, specifically engineered for heavy-duty commercial fleets and large utility vehicles.
Does this lift include alignment components?
Yes, it features built-in slip plates and adjustable turntables as standard equipment to facilitate precision wheel alignments.
What are the power requirements?
The LFPA24 requires a 240V, 4 HP, 15 Amp, 1 Phase, 60Hz power connection.
