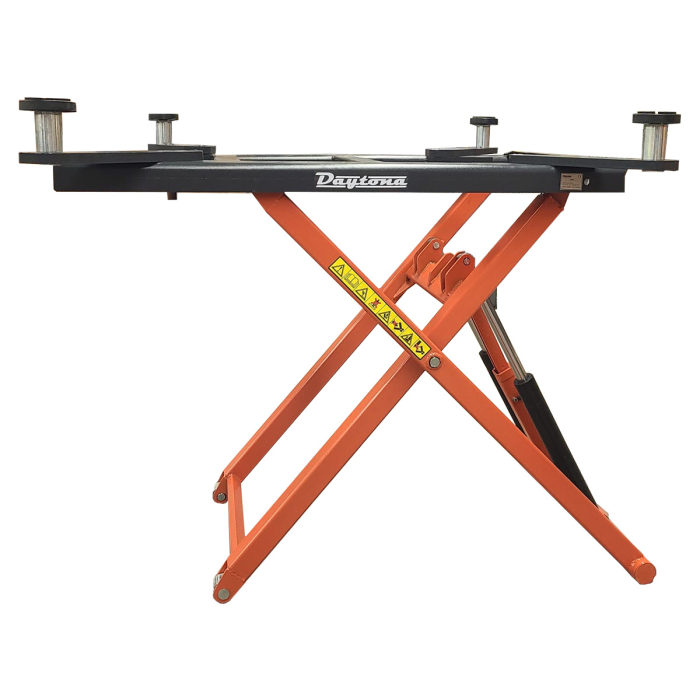

Daytona LMS6 6,000 LBS Mid-Rise Scissor Lift
The LMS6 is a high-performance mid-rise scissor lift featuring an ultra-thin design, making it the perfect solution for low-clearance vehicles and shops with limited space. Engineered with a double cylinder design for smooth, reliable lifting, it comes standard with height extensions and a durable powder-coated finish for industrial-grade longevity.
Product Highlights
- Double cylinder design for powerful lifting
- Built-in mechanical safety locks
- Ultra-thin low profile design
- Standard height extensions included
Power Requirements
120V / 1.5HP / 15A / 1PH / 60Hz
| Specification | Measurement |
|---|---|
| Max Lifting Height | 54.0" |
| Platform Dimensions | 63.0" L x 39.0" W |
| Base Dimensions | 84.0" L x 40.0" W |
| Extensions & Pads | Adds 2.5" to 8" height |
| Shipping Dimensions: Lift | 87" x 43" x 9" / 900 lbs |
| Shipping Dimensions: Pump | 31" x 14" x 12" / 80 lbs |
Key Performance
- Lifting Capacity:6,000 lbs
- Rise Time:45 Seconds
- Min Clearance:5.5"
SHIPPING INFORMATION
| Shipping Dimensions: Lift | 87" x 43" x 9" / 900 lbs |
| Shipping Dimensions: Pump | 31" x 14" x 12" / 80 lbs |
Download Blueprints
FAQ
What is the maximum lifting height of the LMS6?
The LMS6 has a maximum lifting height of 54 inches. This height is ideal for most tire, brake, and suspension services, as well as lower-body detailing.
Can this lift handle low-profile vehicles?
Yes, the LMS6 features an ultra-thin design with a minimum clearance of only 5.5 inches at its lowered height, allowing it to fit under most sports cars and lowered vehicles.
Are height extensions included with the lift?
Yes, height extensions and lifting pads are included as standard equipment. These allow you to add between 2.5" to 8" to the lifting height to accommodate various vehicle frames and pick-up points.
What are the electrical power requirements?
The LMS6 is designed for easy installation and operates on a standard 120V, 1.5HP, 15 Amp, Single Phase (1PH), 60Hz power supply.
