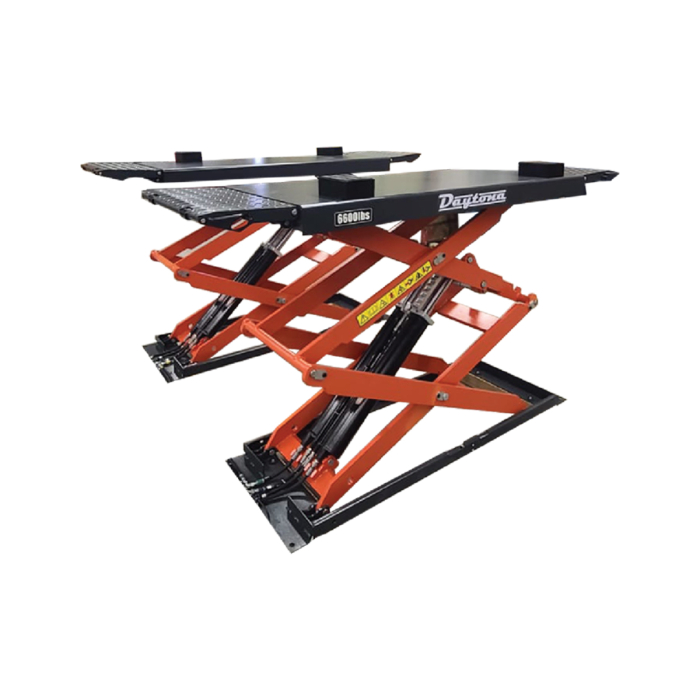

Daytona LHS7 6,600 LBS High Rise Scissor Lift
$4,980.00
SKU
DAY*LHS7
The LHS7 is a premium, space-saving high-rise scissor lift engineered for professional tire shops and home garages. Featuring a robust double hydraulic equalizing system and a low-profile 5-inch lowered height, it delivers exceptional reliability and safety.
- Double hydraulic equalizing system for balanced lifting
- Pneumatic actuated safety lock for secure operation
- Approach ramps double as platform length extensions
- Low profile 5" lowered height for easy vehicle access
Power Requirements
240V / 3HP / 12Amp / 1 PH / 60Hz
| Specification | Measurement |
|---|---|
| Max Height | 74.5" |
| Max Locking Height | 71.0" |
| Lowered Height | 4.5" - 5.0" |
| Platform Dimensions | 59" x 25" (Platform Only) |
| Platform w/ Ramps | 83" x 25" |
| Shipping Weight (Lift) | 1,700 lbs |
Performance
- Lifting Capacity:6,600 lbs
- Rise Time:1 Minute
SHIPPING INFORMATION
Lift Unit: 67" x 26" x 17"
Lift Weight: 1,700 lbs
Pump Unit: 20" x 15" x 43"
Pump Weight: 200 lbs
Download Blueprints
FAQ
What are the power requirements for the LHS7?
The LHS7 requires a 240V, 3HP, 12Amp, 1 Phase, 60Hz power supply.
What is the maximum lifting height?
The maximum lifting height is 74.5 inches, with a mechanical locking height of 71.0 inches.
What accessories are included?
The lift comes with 4 rubber lifting blocks (2.5" x 5" x 6.5" each) and a 9ft hose to connect the lift to the power unit.
