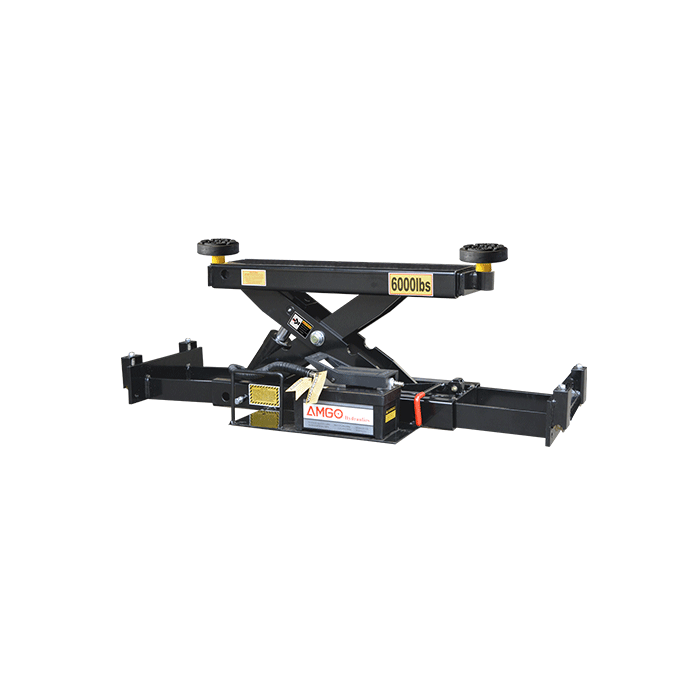

AMGO 6K ROLLING BRIDGE JACK, PNEUMATIC HYDRAULIC PUMP
AMGO RJ-6A is an ideal addition to any four-post & scissors lift with up to a 12,000lbs capacity. Serving as an upgraded version of RJ-6H, the RJ-6A offers almost same features such as floating rolling technology and low profile design. The main improvement lies in the pump, utilizing a AMGO pneumatic hydraulic pump instead of handle pump to offer a more convenient operation.
Click to download Product Manual
Features
- Equipped with pneumatic hydraulic pump;
- Standard 2.5″ extension adapters & durable Rubber Pads Assy;
- Adjustable arms for easy positioning to adjust to the desired supporting point;
- Manual safety lock provides two convenient lock positions for a comfortable work height;
- Extendable lower sliding Assy. fits width of 33 7/8″ to 52 13/16″ between runways ;
- Ergonomically guardrail protects the oil hose, and makes moving the Jack easy.
Specifications
| Model | RJ-6A | |
|---|---|---|
| Lifting Capacity | 6,000 Ibs | |
| Lifting Time | 50s | |
| Arm Pads Reach | A | 33 1/16"-53 7/16" |
| Min. Height | B | 8 7/16" |
| Support Base Width | C | 33 7/8"-52 13/16" |
| Min Rubber Pad Height | D | 8 5/8" |
| Max. Lifting Height (Without adapters) | E | 17 3/4" |
| Max. Lifting Height (With adapters) | 20 1/4" | |
| Overall Width | F | 20 1/16" |
| Air Pressure | 0.8Mpa | |
| Gross Weight | 280 lbs | |
| Pump | Pneumatic Pump |
Detailed Image
High quality pneumatic hydraulic pump with high pressure and longevity hose.
Patented float rolling device allows the jack to move smoothly on the rail while sitting stably in the groove when lifting a vehicle
Manual safety lock is easy to control
Adjustable width makes this suitable for virtually all the four post & scissor l
Ergonomically guardrail protecting oil hose as well as easy to move the Jack.
Stackable rubber pads assembly with 2.5" extension adapters.
Shipping Information
Single unit/package, packing measurement (LxWxH) : 36 1/4" x 21 7/8" x 13 3/4"
6 units/package, packing measurement (LxWxH) : 36 1/4" x 21 7/8" x 75 3/16"
AMGO 5-3-2 Warranty: Industry-leading Service
AMGO Hydraulic Corporation offers one of the best warranties in the business with warranties as follows:
1. Steel Structure Components, Warranty for 5 Years;
2. Hydraulic Parts, Warranty for Three 3 Years:
3. Other Parts, electrical components, power unit, Warranty for 2 Years.
For detail warranty policy, please check here.
https://amgohyd.com/warranty-return-policy
