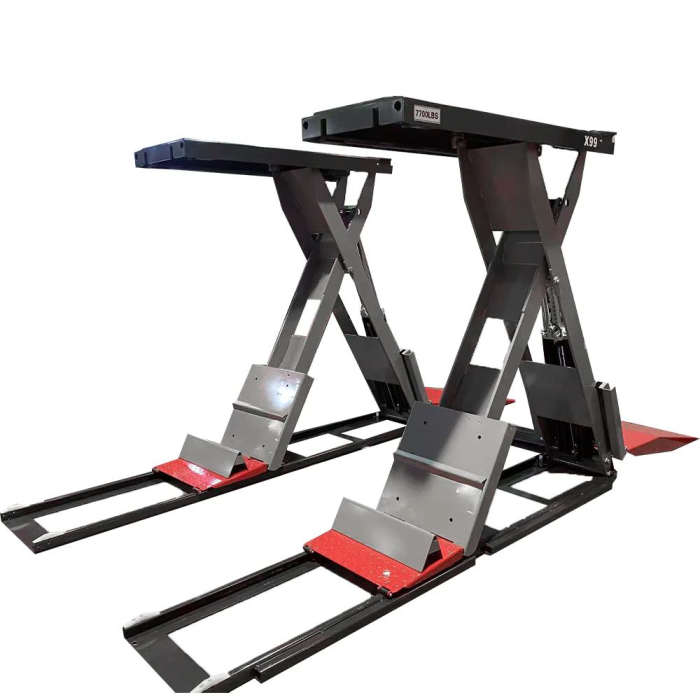

Katool KT-X99 Full Rise Scissor Lift 7,700 lbs Capacity
Professional Full-Rise Hydraulic Scissor Lift for Ultimate Undercar Access
The Katool X99 is a heavy-duty full-rise hydraulic scissor lift built for professional garages, automotive service centers, and serious enthusiasts who need maximum undercarriage access and lifting capacity. Engineered to elevate cars, SUVs, and light trucks with confidence and stability, this lift combines rugged construction with smooth hydraulic operation — making routine maintenance and major repairs easier and safer.
Key Features
-
Heavy-Duty Lifting Capacity: Rated for up to 7,700 lbs, supporting a wide range of passenger vehicles.
-
Full-Rise Capability: Raises vehicles up to an impressive 76 inches for complete access to the undercarriage — great for exhaust work, brakes, suspension, and drivetrain servicing.
-
Hydraulic Power System: Smooth, reliable lifting with consistent performance and minimal vibration throughout the cycle.
-
Compact Footprint: Designed to fit efficiently in busy bays and garage spaces while still offering generous lifting height.
-
Robust Construction: Built from heavy-gauge steel and engineered for daily professional use.
-
Ideal for Multiple Uses: Excellent choice for auto repair shops, collision centers, tire/service bays, and industrial lifting applications.
Why the Katool X99 Stands Out
The X99 delivers a full-rise lift experience without sacrificing strength or stability. Its full 76″ travel lets technicians stand and work comfortably beneath lifted vehicles, significantly improving workflow efficiency and safety compared to mid-rise designs.
| Specification | Detail |
|---|---|
| Model Name | Katool X99 Scissor Lift |
| Lift Type | Hydraulic Scissor Lift |
| Rated Capacity | 7,700 lbs (4,082 kg) |
| Lifting Range | Low Height: 4.5 in (115 mm) Max Height: 76 in (710 mm) |
| Overall Length | 78 in (1,981 mm) |
| Overall Width | 52 in (1,321 mm) |
| Platform Width | 48 in (1,219 mm) |
| Platform Thickness | 1.25 in (32 mm) |
| Lift Speed (Approx.) | ~30–40 seconds (raise/lower) |
| Power Unit | 110V / 220V Electric Hydraulic (single / three phase optional) |
| Motor Power | 2.0 HP (standard) |
| Operating Pressure | 2,200 psi (151.7 bar) |
| Safety Locks | Multi-position Mechanical Safety Lock System |
| Roll-Over Protection | Integrated anti-slip platform texture |
| Construction Material | High-strength welded steel |
| Finish | Powder-coat paint (grey & red) (Rust-resistant) |
| Shipping Weight | ~1,250 lbs (567 kg) |
| Package Dimensions | 84" L × 56" W × 28" H |
| Certifications | CE Certified |
| Warranty | Standard 1-Year Part Warranty & 3-Year Structural Warranty |
