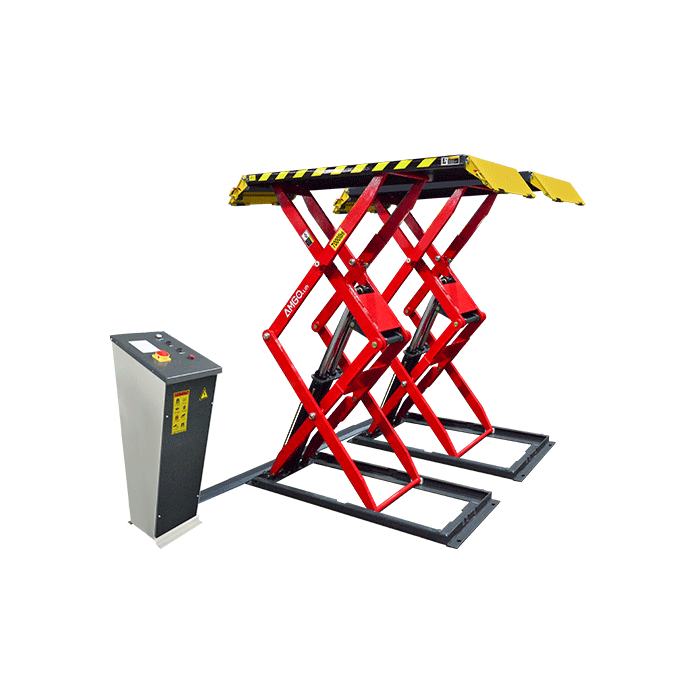

AMGO 7K DBL X LOW PROFILE FULL RISE SCISSOR LIFT
AMGO XL-7 features integrated hydraulic and mechanical locks, making it the most secure lift in its class. This full rise lift provides maximum under-vehicle clearance, and boasts a low profile design of only 4 5/8”, while being able to lift 7,000lbs. With a simple, straightforward installation, and a no-service-required build, this is the professional choice for high-volume shops.
Click to download Product Manual
Features
● Lifting capacity: 7,000lbs;
● Low-profile surface design that allows easy access for low-clearance vehicles;
● Full rise to 78 3/4″ allows you to comfortably work under your vehicle;
● Two dual synchronus cylinders ensure perfectly level lifting across both platforms;
● The dual safety system features an automatic mechanical and hydraulic lock;
● No extra air source required;
● Non-slip platforms come with foldable drive-in ramps;
● Automatic safety device stops 11 13/16″ off the ground;
● Electronic control system with a control cabinet for increased safety.
Specifications
| Model | XL-7 | |
|---|---|---|
| Lifting Capacity | 7,000 Ibs | |
| Lifting Time | 50s | |
| Max. Lifting Height | A | 78 3/4" |
| Minimum Height | 4 5/8" | |
| Overall Length | B | 80" |
| Runway Length | C | 57 5/8" |
| Overall Width | D | 76 3/4" |
| Width Between Runways | E | 29 1/2" |
| Gross Weight | 2,006 lbs | |
| Motor | 2.0HP |
Detailed Image
Easy flip-lock ramps, can be used as extension platform.
ETL certified AMGO power unit.
Two dual synchronus cylinders ensure perfectly level lifting across both platforms.
Feature an automatic mechanical lock and a hydraulic lock
Low profile on surface design, allows easy access for low-clearance vehicles.
Full rise design allows comfortable work underneath the vehicle.
Extendable platforms accommodate various wheel base vehicles.
Both 1 1/2" and 3" rubber pads come standard.
Optional: Leveling bar. Kits No.: SX003
Shipping Information
4 units/package, packing measurement (LxWxH) : 66 15/16" x 27 9/16" x 77 3/16"
Attention to forklift loading and unloading
1 units/package, packing measurement (LxWxH) : 16 7/8”x 18 13/16"x 48 5/8"
AMGO 5-3-2 Warranty: Industry-leading Service
AMGO Hydraulic Corporation offers one of the best warranties in the business with warranties as follows:
1. Steel Structure Components, Warranty for 5 Years;
2. Hydraulic Parts, Warranty for Three 3 Years:
3. Other Parts, electrical components, power unit, Warranty for 2 Years.
For detail warranty policy, please check here.
https://amgohyd.com/warranty-return-policy
