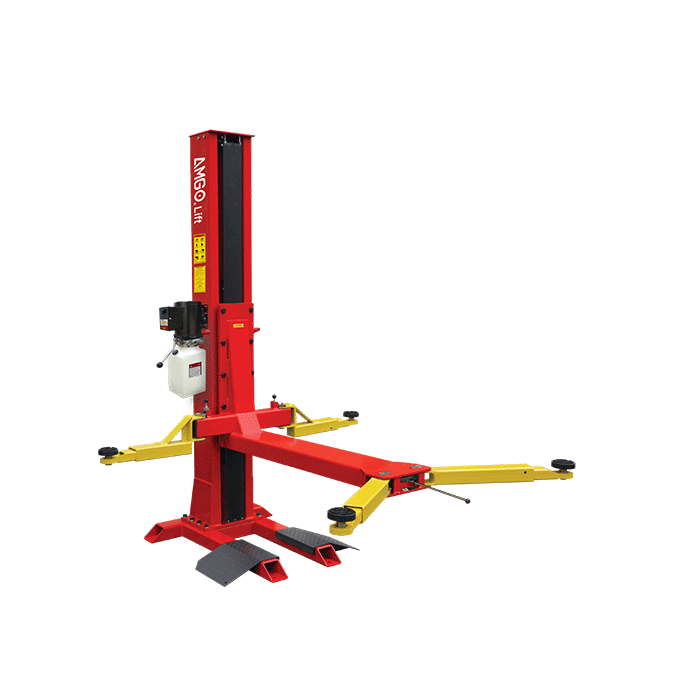

AMGO 7K SINGLE POST BOLT DOWN LIFT

7,000-lb. Capacity/Single Post Lift

AMGO’s newly designed single post lift is the perfect solution for quick lifting in tight spaces. The SL-7 is one of the most compact, bolt-down lifts on the market. It’s ideal for commercial service shops, home garages, or anywhere space is limited and professional-grade durability is a must.

Click to download Product Brochure

Click to download Product Manual

Features

Lifting Capacity: 7,000lbs;
AMGO’s proprietary arm lock release system features a smooth, single-handed release operation;
Double-lock safety system;
Drop-in screw-type rubber pad with 2” pin diameter;
Self-lubricating UHMW polyethylene sliders and bronze bushings;
AMGO ETL certified power unit;

Specifications

Model SL-7		Single Post Lift
Lifting Capacity		7,000 lbs
Lifting Time		84s
Max. Lifting Height: (w/o extension adapter)	A	70 13/16" ~ 72 3/4"
Max. Lifting Height: (w/ extension adapter)		72 3/4" ~ 75 11/16"
Max. Lock Height: (w/o extension adapter )		67 7/16" ~ 69 3/8"
Max. Lock Height: (w/ extension adapter )		70 7/16” ~ 72 3/8“
Overall Height	B	109 7/16"
Overall Width	C	84 1/2"
Minimum Pad Height	D	3 5/16"
Gross Weight		1,488 lbs
Motor		1.0HP,110V/60Hz
QTY of Container		12 Units/20'GP

Detailed Image

Single point safety release makes it easier for operators to unlock both columns from one column.

ETL certified AMGO power unit.

Dual-lock safety mechanism and chain-protective cover,only available at AMGO.

AMGO's proprietary arm lock release system features a smooth, single-handed operation.

Low profile space-saving ramps are easy to install,easy to drive in.

Thickened steel structure provides more safety and stability.

Drop-in screw-type rubber pad with 2” pin diameter, comes with 3" extension adapter.

Fabric chain cover protects the cylinder and provides a nice, clean appearance.

Shipping Information

Single unit as a package, packing dimension of column (LxWxH): 109 1/16" x 20 1/16" x 14 3/4“

6 units as a package, packing dimension (LxWxH): 109 1/16" x 20 1/16" x 88 9/16"

Single unit as a package, packing dimension (LxWxH): 76 3/4" x 55 1/2" x 35 9/16"

4 units as a package, packing dimension (LxWxH): 76 3/4" x 55 1/2" x 87 1/2"

More Information

More Information
Weight Capacity	7,000 lb
