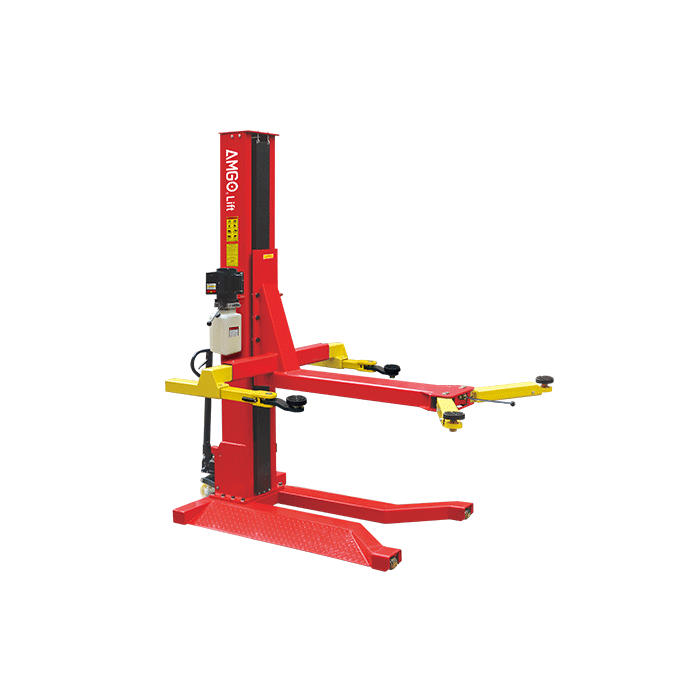

AMGO 7K SINGLE POST PORTABLE LIFT

Features

• Portable design with a 7,000-lb. lifting capacity;
• AMGO’s patented arm lock release system allows a seamless, one-handed release operation;
• Patented, easily adjustable AMGO bionic arms for precise positioning at lifting points;
• Drop-in screw-type rubber pad with 2” pin diameter;
• Self-lubricating UHMW polyethylene sliders and bronze bushings;
• AMGO ETL certified power unit.

Specifications

Model SML-7		Single Post Lift
Lifting Capacity		7,000 lbs
Lifting Time		84s
Max. Lifting Height: (w/o extension adapter)	A	70 13/16" ~ 72 3/4"
Max. Lifting Height: (w/ extension adapter)		72 3/4" ~ 75 11/16"
Max. Lock Height: (w/o extension adapter )		67 7/16" ~ 69 3/8"
Max. Lock Height: (w/ extension adapter )		70 7/16” ~ 72 3/8“
Overall Height	B	109 7/16"
Overall Width	C	90 3/8"
Minimum Pad Height	D	3 5/16"
Gross Weight		1,942 lbs
Motor		1.0HP,110V/60Hz
QTY of Container		12 Units/20'GP

Detailed Image

Single point safety release makes it easier for operators to unlock both columns from one column.

ETL certified AMGO power unit.

Dual-lock safety mechanism and chain-protective cover,only available at AMGO.

AMGO’s patented arm lock release system allows a seamless, one-handed release operation.

Patented, easily adjustable AMGO bionic arms for precise positioning at lifting points.

Portable wheels make it easy to move the lift.

Drop-in screw-type rubber pad with 2” pin diameter, comes with 3" extension adapter.

Fabric chain cover protects the cylinder and provides a nice, clean appearance.

Shipping Information

Single unit as a package, packing dimension of column (LxWxH): 109 1/16" x 20 1/16" x 14 3/4“

6 units as a package, packing dimension (LxWxH): 109 1/16" x 20 1/16" x 88 9/16"

Single unit as a package, packing dimension (LxWxH): 76 3/4" x 55 1/2" x 35 9/16"

4 units as a package, packing dimension (LxWxH): 76 3/4" x 55 1/2" x 87 1/2"
