Triumph Classic Lift 8,000 Shorter Length
$3,495.00
SKU
TRI*NSS-8-CLASSIC

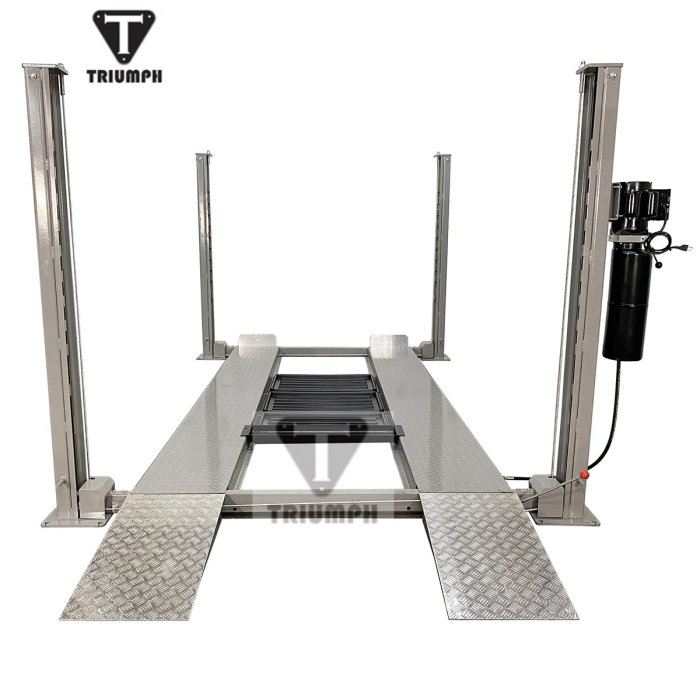

The Classic Lift
This car lift is great for storage or service. This lift comes with a caster kit, jack tray, and three drip trays. The drips trays will keep any fluid from the top vehicle from dripping on the bottom vehicle. Jack tray allows you to use a bottle jack or floor jack to lift one end of your vehicle. Caster kit allows you to easily move your auto lift around the garage. It is easy to set up and completely portable. If you need to store your car this is the lift for you. A time tested design that has been used for over 20 years. With automatic locking that engage at 10 different positions as you raise the vehicle. The default standard color is Grey.
Specifications
| Capacity | 8,000 lbs. |
| Overall Height | 84" |
| Overall Length with approach ramps | 175" |
| Overall Length without approach ramps | 141" |
| Overall Width | 106" |
| Lift Height | 72" |
| Height Under Runway | 69" |
| Runway Length | 132" |
| Drive Thru Width | 93" |
| Runway Width | 18" |
| Between Runway | 37" |
| Lowered Height | 5" |
| Locking Positions | 10 |
| Base Plate Size | 12"x12" |
| Lock Release | Single Point |
| Lift Time | 40 Seconds |
| Voltage | 110 Volts |
| Shipping Weight | 1,600 lbs. |
| Shipping Dimensions |
| Shipping Length | 137 |
|---|---|
| Shipping Width | 21 |
| Shipping Height | 29 |
