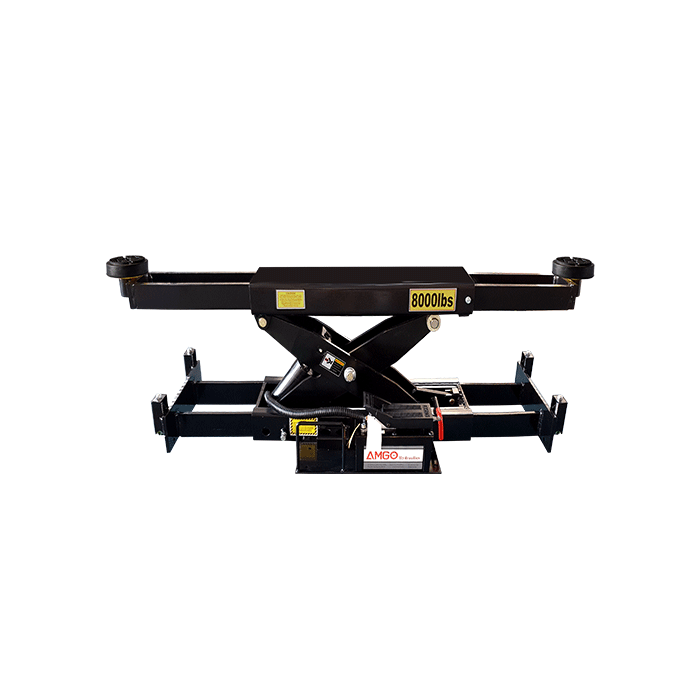

AMGO 8K ROLLING BRIDGE JACK, PNEUMATIC HYDRAULIC PUMP
$1,945.00
SKU
AMG*RJ-8A
8,000-lb. Capacity/Pneumatic Pump
The commercial grade AMGO RJ-8A is built powerfully and is easy to use. The strengthened structure incorporates AMGO floating rolling technology,with an 8000-lb capacity. Its telescoping arms and adjustable lower sliding assembly makes It a powerful lifting tool that is usable on various vehicles for commercial shops and home garages.
Click to download Product Manual
Features
- Equipped with pneumatic hydraulic pump;
- Whole set of 2.5”, 5” adapters & rubber pad assy., increases the lifting height to service most pickups and high-seated passenger cars;
- The unique patent floating roller system with protective box that ensures the jack to glide smoothly on the rail;
- Extendedable telescoping arms can be positioned to the correct lifting points at any time;
- Enhance solid scissors provide running stability;
- Adjustbale lower sliding assy. fits many different brands of four post or scissor lifts with a width of 36” to 56 1/2” between runways;
- The jack features two solid locking positions that are used once the jack is raised to a comfort work height;
- Convenient guradrail works as a booster handle for for easily moving the Jack and protecting the oil hose.
Specifications
| Model | RJ-8A | |
|---|---|---|
| Lifting Capacity | 8,000 Ibs | |
| Lifting Time | 50s | |
| Arm Pads Reach | A | 34 7/16" - 56" |
| Min. Height | B | 10 11/16" |
| Support Base Width | C | 36" - 56 1/2" |
| Min Rubber Pad Height | D | 10 7/8" |
| Max. Lifting Height (Without adapters) | E | 21 3/16" |
| Max. Lifting Height (With adapters) | 28 11/16" | |
| Overall Width | F | 21 3/4" |
| Air Pressure | 0.8Mpa | |
| Gross Weight | 397lbs | |
| Pump | Pneumatic Pump |
Detailed Image
Excellent quality pneumatic hydraulic pump matched with a high working pressure oil hose. Includes a customized special bracket for adapter storage.
Patented float rolling devices allows the jack to move smoothly on the rail while sitting stably in the groove when lifting a vehicle.
Simple-to-operate manual safety lock allows access to multiple lock positions for a comfortable working height.
The long-reach arm and lower sliding assembly are fully adjustable to accommodate virtually any 4-post or scissor lift.
Ergonomically guardrail help to protect oil hose as well as assist to move the Jack easily.
Stackable rubber pads assembly with 2.5", 5" extension adapters.
Shipping Information
Single unit/package, packing measurement (LxWxH) : 38 9/16" x 22 13/16" x 15 3/8"
5 units/package, packing measurement (LxWxH) : 38 9/16" x 22 13/16" x 62 3/16"
AMGO 5-3-2 Warranty: Industry-leading Service
AMGO Hydraulic Corporation offers one of the best warranties in the business with warranties as follows:
1. Steel Structure Components, Warranty for 5 Years;
2. Hydraulic Parts, Warranty for Three 3 Years:
3. Other Parts, electrical components, power unit, Warranty for 2 Years.
For detail warranty policy, please check here.
https://amgohyd.com/warranty-return-policy
