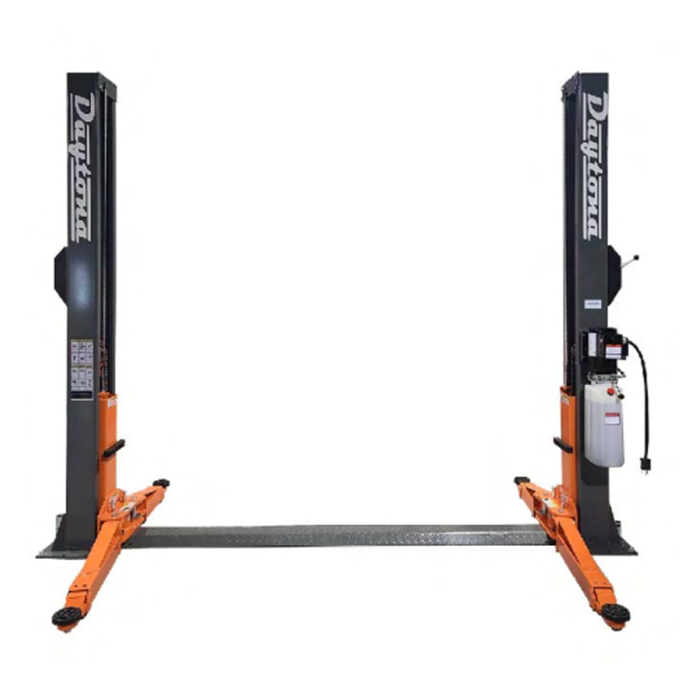

Daytona LTPF9 9,000 LBS 2-Post Floorplate Lift
The LTPF9 is a robust 2-post automotive lift featuring a floorplate design, ideal for facilities with lower ceiling heights. Equipped with chain-over hydraulic cylinders, high-polymer slide blocks, and three-stage front arms, it offers a reliable and versatile lifting solution for vehicles up to 9,000 lbs.
Product Highlights
- 9,000 lbs Lifting Capacity
- Single point safety lock release
- Chain-over hydraulic cylinders
- Standard truck adapters included
Power Requirements
240V / 3HP / 13A / PH1 / 60Hz
| Specification | Measurement |
|---|---|
| Lifting Capacity | 9,000 lbs |
| Lifting Height | 4.5" – 74.8" |
| Width Between Columns | 110.5" |
| Shipping Dimensions: Lift | 114" x 18" x 30" / 1300 lbs |
| Shipping Dimensions: Pump | 31" x 12" x 11" / 60 lbs |
| Shipping Dimensions | 278" x 33" x 65" |
Key Dimensions
- Overall Height:110.0"
- Overall Width:131.2"
- Drive-Through:98.9"
SHIPPING INFORMATION
Lift Unit: 114" x 18" x 30" (1300 lbs)
Pump Unit: 31" x 12" x 11" (60 lbs)
Download Blueprints
FAQ
What is the minimum ceiling height required for the LTPF9?
Because the LTPF9 is a floorplate design with no overhead bar, the minimum ceiling height is determined by the height of the columns (approx. 110 inches) plus the height of the vehicle you intend to lift. It is significantly more flexible than clear-floor models.
Does this lift include truck adapters?
Yes, standard truck adapters are included with every LTPF9 purchase, allowing you to safely lift SUVs and trucks immediately after installation.
What are the concrete requirements for installation?
For safe operation, the lift must be installed on a minimum of 4-6 inches of 3000-4000 PSI concrete. Always refer to the user manual for specific anchoring instructions.
What is a "single point release" safety lock?
The single point release allows the operator to disengage the safety locks on both columns from one side of the lift, making the lowering process faster and more convenient.
