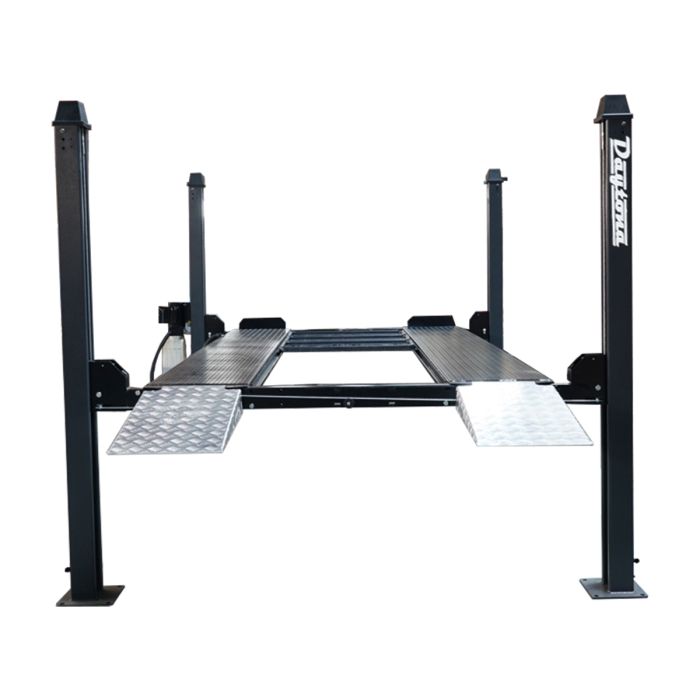

Daytona LFPP9 9,000 LBS 4-Post Parking Lift
The LFPP9 is a highly versatile 4-post parking lift designed to maximize your garage space. Featuring a 9,000 lbs lifting capacity and a 70.9" clearance under the runway, it is the ideal solution for storing classic cars, standard trucks, and SUVs.
- Advanced Locking System with primary and secondary safety locks
- Single point manual safety release for ease of use
- Removable tilting Aluminum approach ramp included
- Includes 1 steel tool tray and 3 plastic drip trays
Power Requirements
120V / 1.5HP / 26Amp / 1 PH / 60Hz
| Specification | Measurement |
|---|---|
| Overall Length | 179.7" (4565mm) |
| Overall Width | 104.1" (2644mm) |
| Overall Height | 91.3" (2320mm) |
| Max Clearance | 70.9" (under runway) |
| Shipping Weight | 1,800 lbs |
| Shipping Dimensions | 278" x 33" x 65" |
RUNWAY SPECIFICATIONS
- Width:19.3"
- Length:164.2"
SHIPPING INFORMATION
Lift Dimensions: 175" x 23" x 30"
Shipping Weight: 1,800 lbs
Pump: Attached to lift. Included in dimensions.
Optional Wheel Kit: 40" x 24" x 10" (120 lbs)
Download Blueprints
FAQ
What are the power requirements for the LFPP9?
The LFPP9 requires a standard 120V, 1.5HP, 26Amp, 1PH, 60Hz power supply.
What accessories are included with the LFPP9?
The lift comes standard with 1 steel tool tray and 3 plastic drip trays. Removable tilting aluminum approach ramps are also included.
What is the maximum clearance under the runway?
The LFPP9 provides a maximum clearance of 70.9 inches under the runway, ideal for stacking standard cars and SUVs.
