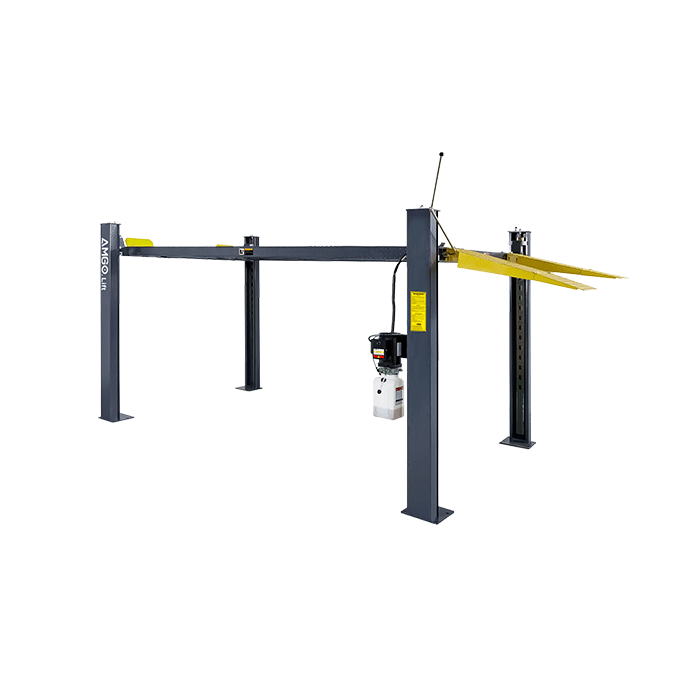

AMGO 7K 4-POST PARKING LIFT, STANDARD
AMGO 407-P is a space-saving solution. It takes up much less space than its counterparts, features a convenient patented concealed lock control mechanism, and allows back-to-back installation. Ideal for shops or home garages, this commercial-grade lift is easy to install and demands little maintenance.
Features
● Lifting capacity: 7,000lbs;
● AMGO ETL certified power unit comes standard;
● High quality cylinder is designed and made to a high standard;
● AMGO’s patented design concealed safety lock control device with a manual single-point lock release;
● Aero standard cables come standard;
● Double-
shaped columns are used to enhance strength;
● Non-slip platforms come with foldable drive-in ramps;
● Support back-to-back installation to minimize space occupancy;
● Power side column can be installed at any corner.
Specifications
| Model | 407-P | |
|---|---|---|
| Lifting Capacity | 7,000 Ibs | |
| Lifting Time | 83s(110v) 31s(220v) |
|
| Overall Length (Inc Ramps) | A | 185 13/16" |
| Outside Edge of Crossbeams | B | 145 11/16" |
| Overall Width | C | 94 13/16" |
| Width Between Posts | D | 85 5/16" |
| Max. Lifting Height | E | 73 7/16" |
| Max. Locking Height | 72 11/16" | |
| Overall Height | F | 82 7/8" |
| Minimum Height | G | 4 15/16" |
| Max. Underneath Height | H | 69 1/2" |
| Max. Lock Underneath Runway | 66 3/4" | |
| Drive-Thru Clearance | I | 77" |
| Width Between Runways | J | 37" |
| Outside Edge of Runways | K | 74 7/16" |
| Gross Weight | 1,430 lbs | |
| Motor | 2.0HP(220v) 1.0HP(110V) |
Detailed Image
AMGO's patented design: concealed safety lock control device with a manual single point lock release.
Foldable drive-on ramps. (each lift 2 units). P/N:1104543020C-01
Double safety locks provide additional safety.
90° motor installing plate. P/N: 40802
Optional Caster kits help easily maneuver the parking lift. One set 4pcs. Kits No: 40801
Optional plastic oil tray (1 set, 4pcs) Kits No.: 40806.
Optional extended aluminum drive-in ramp. P/N: 40814, each lift needs 2 units.
Optional Adj. Jack Tray. P/N: 40816
Optional Motor Protective cover (with emergency stop switch). Kits No.: 40810
Optional rubber wheel chock P/N: 40811
Optional storage wave panels Kits No.: 40812.
Optional J5H sliding jack with hand pump, 2.5" extension adapters included. Capacity 5,000lbs.
Shipping Information
1 units/package, packing measurement (LxWxH): 146 1/16" x 20 1/4"x 29 5/16". Packed with Power Unit.
3 units/package, packing measurement (LxWxH) : 146 1/16" x 20 1/4"x 86 1/4"
