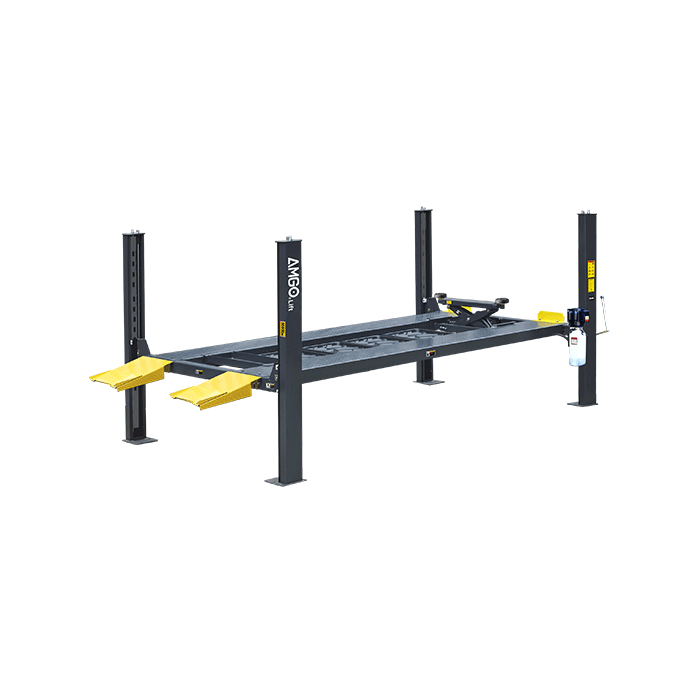

AMGO 8K 4-POST PARKING LIFT, DELUXE
The 408 deluxe series provides a comfortable parking solution for vehicles up to 8,000lbs. 408-P is built sturdy and space-saving, offering a broader entrance and longer platforms. It doesn’t require anchoring to concrete and can be easily moved using caster kits. Deluxe & easy to use – this makes it perfect for residential and commercial usage.
Click to download Product Manual
Features
● Lifting capacity: 8,000lbs;
● AMGO ETL certified power unit comes as standard;
● High quality dual hydraulic direct-drive cylinders;
● AMGO’s patented design: concealed safety lock control device with a manual single-point lock release;
● Aero standard cables come standard;
● Double-
shaped columns are used to enhance strength;
● Non-slip platforms come with foldable drive-in ramps;
● Support back-to- back installation to minimize space occupancy;
● Power side column can be installed at any corner.
Specifications
| Model | 408-P | |
|---|---|---|
| Lifting Capacity | 8,000 Ibs | |
| Lifting Time | 98s(110v) 40s(220v) |
|
| Overall Length (Inc Ramps) | A | 208 1/16" |
| Outside Edge of Crossbeams | B | 167 5/8" |
| Overall Width | C | 102 1/2" |
| Width Between Posts | D | 92 13/16" |
| Max. Lifting Height | E | 73 11/16" |
| Max. Locking Height | 70 15/16" | |
| Overall Height | F | 82 7/8" |
| Minimum Height | G | 5 11/16" |
| Max. Underneath Height | H | 69" |
| Max. Lock Underneath Runway | 66 1/4" | |
| Drive-Thru Clearance | I | 81 5/8" |
| Width Between Runways | J | 37" |
| Outside Edge of Runways | K | 74 7/16" |
| Gross Weight | 1,563 lbs | |
| Motor | 2.0HP(220v) 1.0HP(110V) |
Detailed Image
AMGO’s patented design: concealed safety lock control with a manual single-point release.
Foldable drive-on ramps. (each lift 2 units). P/N:1104533025C-01
Double safety locks provide additional safety.
90° motor installing plate. P/N: 40802
Optional Caster kits help easily maneuver the parking lift. One set 4pcs. Kits No: 40801
Optional plastic oil tray (1 set, 4pcs) Kits No.: 40806.
Optional extended aluminum drive-in ramp. P/N.: 40815, each lift needs 2 units.
Optional Adj. Jack Tray, P/N: 40816
Optional Motor Protective cover (with emergency stop switch). Kits No.: 40810
Optional rubber wheel chock P/N: 40811
Optional storage wave panels Kits No.: 40812.
Optional J5H sliding jack with hand pump, 2.5" extension adapters included. Capacity 5,000lbs.
Shipping Information
1 units/package, packing measurement (LxWxH): 167 3/4" x 20 1/2" x 29 5/16". Packed with Power Unit.
3 units/package, packing measurement (LxWxH) : 167 3/4" x 20 1/2" x 87 3/8"
After the machine is pulled out from the container, use the forklift to lift the machine from the middle position.
AMGO 5-3-2 Warranty: Industry-leading Service
AMGO Hydraulic Corporation offers one of the best warranties in the business with warranties as follows:
1. Steel Structure Components, Warranty for 5 Years;
2. Hydraulic Parts, Warranty for Three 3 Years:
3. Other Parts, electrical components, power unit, Warranty for 2 Years.
For detail warranty policy, please check here.
https://amgohyd.com/warranty-return-policy
