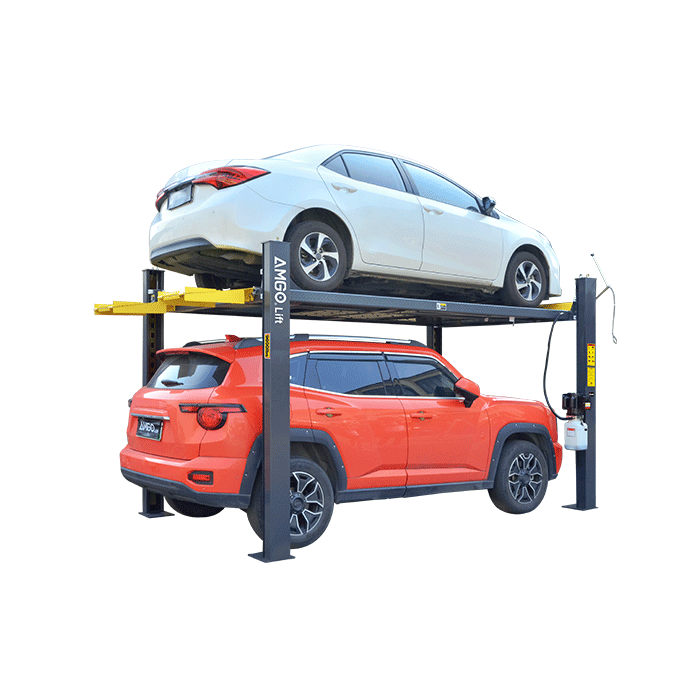

AMGO 9K 4-POST PARKING PRO LIFT
AMGO 409-HP Pro series is built for full range vehicles including car, SUV and light truck. It boasts a lifting capacity at 9000lbs, can handle some tough works such as parking longer and taller vehicles. It’s easy to install, requires barely maintenance and offers great mobility.
Click to download Product Manual
Features
● Lifting capacity: 9,000lbs;
● AMGO ETL certified power unit comes standard;
● High quality cylinder is designed and made to a high standard;
● AMGO’s patented design: concealed safety lock control device with a manual single-point lock release;
● Aero standard cables come standard;
● Double-
shaped columns are used to enhance strength;
● Non-slip platforms come with foldable drive-in ramps;
● Support back-to-back installation to minimize space occupancy;
● Power side column can be installed at any corner;
● Extremely high lifting is suitable to park taller vehicles;
● Pull rope comes standard;
Specifications
| Model | 409-HP | |
|---|---|---|
| Lifting Capacity | 9,000 Ibs | |
| Lifting Time | 143s(110v) 57s(220v) |
|
| Overall Length (Inc Ramps) | A | 238 1/8" |
| Outside Edge of Crossbeams | B | 197 3/4" |
| Overall Width | C | 109 5/16" |
| Width Between Posts | D | 99 5/8" |
| Max. Lifting Height | E | 88 1/16" |
| Max. Locking Height | 85 5/16" | |
| Overall Height | F | 96 5/8" |
| Minimum Height | G | 6 1/8" |
| Max. Underneath Height | H | 82 9/16" |
| Max. Lock Underneath Runway | 79 13/16" | |
| Drive-Thru Clearance | I | 88 7/16" |
| Width Between Runways | J | 42 3/8" |
| Outside Edge of Runways | K | 82 3/8" |
| Gross Weight | 1,956 lbs | |
| Motor | 2.0HP(220v) 1.0HP(110V) |
Detailed Image
AMGO’s patented design: concealed safety lock control with a manual single-point release.
Foldable drive-on ramps. (each lift 2 units). P/N:1104533025C-01
Double safety locks provide additional safety.
90° motor installing plate. P/N: 40802
Optional Caster kits help easily maneuver the parking lift. One set 4pcs. Kits No: 40801
Optional plastic oil tray (1 set, 4pcs) Kits No.: 40807.
Optional extended aluminum drive-in ramp. P/N: 40815, each lift needs 2 units.
Optional Adj. Jack Tray,P/N: 40816
Optional Motor Protective cover (with emergency stop switch). Kits No.: 40810
Optional rubber wheel chock P/N: 40811
Optional storage wave panels Kits No.: 40812.
Optional RJ-6H sliding jack with hand pump, 2.5" extension adapters included. Capacity 6,000lbs.
Shipping Information
1 units/package, packing measurement (LxWxH): 202 5/8" x 22 1/16" x 29 5/16". Packed with Power Unit.
3 units/package, packing measurement (LxWxH) : 202 5/8" x 22 1/16" x 85 13/16"
After the machine is pulled out from the container, use the forklift to lift the machine from the middle position.
AMGO 5-3-2 Warranty: Industry-leading Service
AMGO Hydraulic Corporation offers one of the best warranties in the business with warranties as follows:
1. Steel Structure Components, Warranty for 5 Years;
2. Hydraulic Parts, Warranty for Three 3 Years:
3. Other Parts, electrical components, power unit, Warranty for 2 Years.
For detail warranty policy, please check here.
