AMGO 12K DBL X SCISSOR DRIVE ON LIFT
$11,875.00
SKU
AMG*AX-12

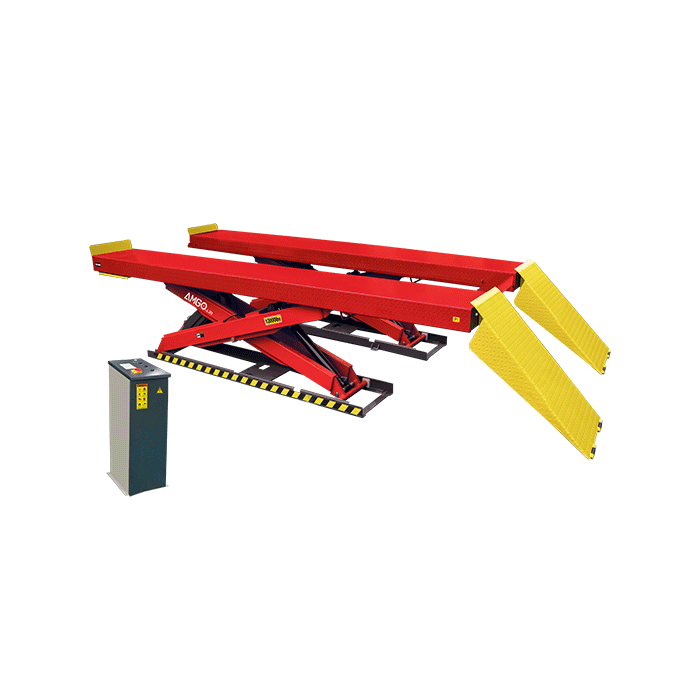

AMGO’s AX-12 features a heavy-duty structure with robust X scissors, offering superior performance to lift up to 12000lbs. It includes both hydraulic and mechanical locks, making AX-12 the safest lift in its category. More stronger and versatile, AX-12 features non-skid platforms and a convenient service shelf for enhanced usability.
Click to download Product Manual
Features
- 12,000lbs capacity;
- Robot X scissors heavy duty structure, provides superior performance and durability ;
- Full rise design, offers comfortable experience work underbeath;
- Two groups of total 4 hydraulic cylinders are intergrated to assure the equalization and safety of both platforms.;
- Dual safety system feature both hydraulic lock and self-locking mechanical lock with air lock release;
- Electric-hydraulic power system, with control power unit;
- Non-slip long and wide platforms accommodate various vehicles;
- Automatic safety stop device come standard;
Specifications
| Model | AX-12 | |
|---|---|---|
| Lifting Capacity | 12,000 Ibs | |
| Lifting Time | 75s | |
| Max. Lifting Height | A | 72 13/16" |
| Max. Lock Height | 71 1/16" | |
| Minimum Height | 12" | |
| Runway Length | B | 197 9/16" |
| Overall Width | C | 90 3/16" |
| Width Between Runways | D | 40 15/16" |
| Overall Length (Inc. Ramps) | E | 267 1/16" |
| Gross Weight | 4,872 lbs | |
| Motor | 2.0HP |
Detailed Image
Electro-air control system, mechanical safety locks.
ETL certified AMGO power unit.
Nice design pull-out tool tray comes standard.
Two groups of total 4 hydraulic cylinders are intergrated to assure the equalization and safety of both platforms.
Heavy duty design with robust X sicissors made of large steel tubes to ensure strong capabilities under heavy workloads.
Non-skid long and wide platforms accommodate various vehicles. Drive-in ramp assembly P/N: 11530617.
Optional: extension platform,P/N: PX001.
Optional air line kits (kits no.: PX004A).
Optional RJ-6A sliding jack with pneumatic hydraulic, 2.5" extension adapters included. Capacity 6,000lbs.
Shipping Information
2 units/package, packing measurement (LxWxH) : 203 9/16" x 29 15/16" x 80".
Attention to forklift loading and unloading.
1 unit/ctn, control cabinet packing measurement (LxWxH): 16 7/8”x 18 13/16"x 48 5/8"
AMGO 5-3-2 Warranty: Industry-leading Service
AMGO Hydraulic Corporation offers one of the best warranties in the business with warranties as follows:
1. Steel Structure Components, Warranty for 5 Years;
2. Hydraulic Parts, Warranty for Three 3 Years:
3. Other Parts, electrical components, power unit, Warranty for 2 Years.
For detail warranty policy, please check here.
