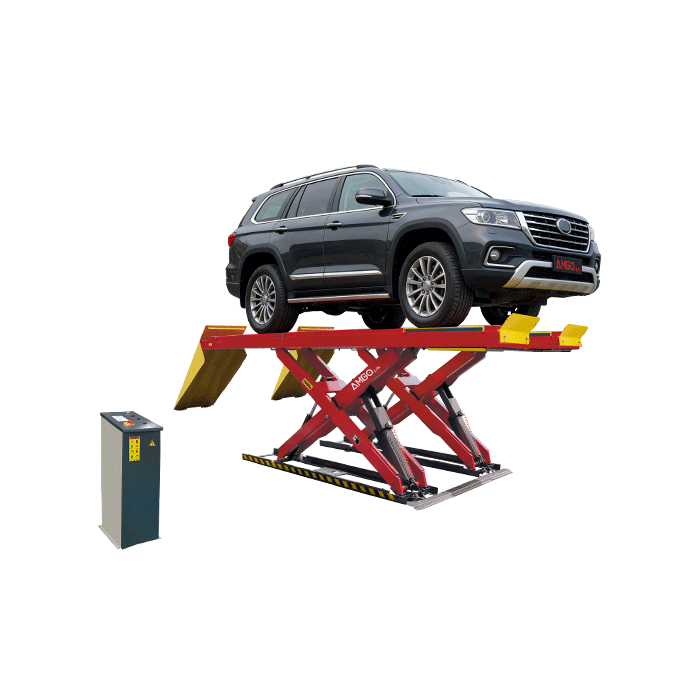

AMGO 16K DBL X SCISSOR DRIVE ON ALIGNMENT LIFT
$17,565.00
SKU
AMG*AX-16A
With a superior duty structure, the AMGO AX-16A can handle alignment services for various vehicles from cars to long-wheelbase trucks and vans, supporting weights up to 16000lbs. Equipped with both hydraulic and mechanical locks for enhanced safety, the AX-16A stands out as the top choice for your extreme missions.
Click to download Product Manual
Features
- 16,000lbs capacity;
- Alignment service design;
- Robot X scissors heavy duty structure, provides superior performance and durability ;
- Full rise design, offers comfortable experience work underbeath;
- Two groups of total 4 hydraulic cylinders are intergrated to assure the equalization and safety of both platforms.;
- Dual safety system feature both hydraulic lock and self-locking mechanical lock with air lock release;
- Electric-hydraulic power system, with control power unit;
- Non-slip long and wide platforms accommodate various vehicles;
- Automatic safety stop device come standard;
Specifications
| Model | AX-16A | |
|---|---|---|
| Lifting Capacity | 16,000 Ibs | |
| Lifting Time | 110s | |
| Max. Lifting Height | A | 72 13/16" |
| Max. Lock Height | 71 1/16" | |
| Minimum Height | 13" | |
| Runway Length | B | 213 11/16" |
| Overall Width | C | 94 1/16" |
| Width Between Runways | D | 44 7/8" |
| Overall Length (Inc. Ramps) | E | 274 3/16" |
| Min. Four Wheel Align | F | 98" |
| Max. Four Wheel Align | G | 184 1/16" |
| Max. Two Wheel Align | H | 186 5/8" |
| Gross Weight | 6,283 lbs | |
| Motor | 2.0HP |
Detailed Image
Two groups of total 4 hydraulic cylinders are intergrated to assure the equalization and safety of both platforms.
Heavy duty design with robust X sicissors made of large steel tubes to ensure strong capabilities under heavy workloads. Electro-air control system, mechanical safety locks.
Nice design pull-out tool tray comes standard.
ETL certified AMGO power unit.
Non-skid long and wide platforms accommodate various vehicles. Drive-in ramp assembly P/N: 11540610.
Optional: extension platform, P/N: PX003.
Optional Turnplate. Kits No.: 40101. Each alignment lift need 2 pcs.
Optional air line kits (kits no.: PX004A).
Optional rolling jacks RJ-8A: pneumatic hydraulic type 8,000lbs.
Shipping Information
2 units/package, packing measurement (LxWxH) : 218 1/2" x 29 15/16 x 80".
Attention to forklift loading and unloading.
1 unit/ctn, control cabinet packing measurement (LxWxH): 16 7/8”x 18 13/16"x 48 5/8"
AMGO 5-3-2 Warranty: Industry-leading Service
AMGO Hydraulic Corporation offers one of the best warranties in the business with warranties as follows:
1. Steel Structure Components, Warranty for 5 Years;
2. Hydraulic Parts, Warranty for Three 3 Years:
3. Other Parts, electrical components, power unit, Warranty for 2 Years.
