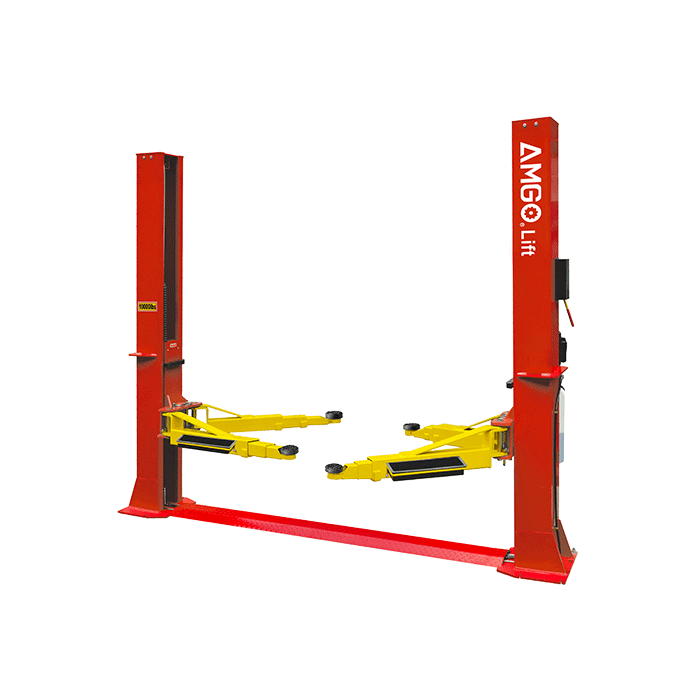

AMGO 10K 2-POST BASE PLATE LIFT
AMGO BP series lifts are stronger and easier to operate than any other lift in the world, with the BP-10 as the best representative. This is an exceptional model that features a 10,000lbs capacity and two widths setting, capable to lift most cars from compact cars to long wheelbases and heavy cars. The BP-10 is built to AMGO’s highest standards, utilizing advanced technology for maximum safety, long-term durability, and reliable performance.
Click to download Product Manual
Features
- Lifting capacity: 10,000 lbs;
- Two installation widths that fit various vehicles;
- Commercial grade with an strong structure, designed for professional workshops and home garages;
- Symmetric four 3-stage retractable arms that fit more vehicles;
- Automatic arms restraint;
- Single-point manual safety lock release that simultaneously unlocks both columns from one side;
- Dual-safety lock structure guarantees more security;
- Self-lubricating UHMW polyethylene sliders;
- Aero sync cables come standard;
- Toe guards and tool trays come standard;
- Standard double-screw rubber pad ( pin dia 2″ ) with 3″ extension adapters.
Specifications
| Model BP-10 | Base plate two post lift | |
|---|---|---|
| Lifting Capacity | 10,000 Ibs | |
| Lifting Time | 62s | |
| Max. Lifting height: (w/o extension adapter) | A | 76 3/8"~78 1/4" |
| Max. Lifting height: (w/ extension adapter) | 79 3/8"~81 1/4" | |
| Max. lock height: (w/o extension adapter) | 74 13/16″~76 11/16" | |
| Max. lock height: (w/ extension adapter) | 77 13/16"~79 11/16" | |
| Overall Height | B | 111 7/8" |
| Overall Width | C | 139 1/8" & 145 1/16" |
| Drive-Thru Clearance | D | 100 3/4" & 106 11/16" |
| Width Between Columns | E | 112 1/4" & 118 1/8" |
| Minimum Pad Height | F | 3 9/16" |
| Gross Weight | 1,697 Ibs | |
| Motor | 2.0HP | |
| QTY of Container | 16 Units / 20'GP |
Detailed Image
Single-point manual safety lock release that simultaneously unlocks both columns from one side.
ETL certified AMGO power unit.
Symmetric 3-stage retractable arms are suitable for more vehicles. Toe guards and tool trays come standard
Two installation widths available to choose (Distance between columns: 112 3/16", 118 1/8").
AMGO's exclusive dual safety lock structure.
Double-screw rubber pad with pin dia. 2", comes with 3" extension adapter.
Optional saddle adapter. Kits No.: 21108
Optional 6" extension adapter. P/N: 1102504001-01
Optional base plate extention. Kits no.: 20903
Shipping Information
2 units/package, packing measurement (LxWxH) : 114 1/8" x 20 1/8" x 71" (Packed with power unit)
Attention to forklift loading and unloading
AMGO 5-3-2 Warranty: Industry-leading Service
AMGO Hydraulic Corporation offers one of the best warranties in the business with warranties as follows:
1. Steel Structure Components, Warranty for 5 Years;
2. Hydraulic Parts, Warranty for Three 3 Years:
3. Other Parts, electrical components, power unit, Warranty for 2 Years.
For detail warranty policy, please check here.
