AMGO 12K 2-POST BASE PLATE LIFT
$5,160.00
SKU
AMG*BP-12

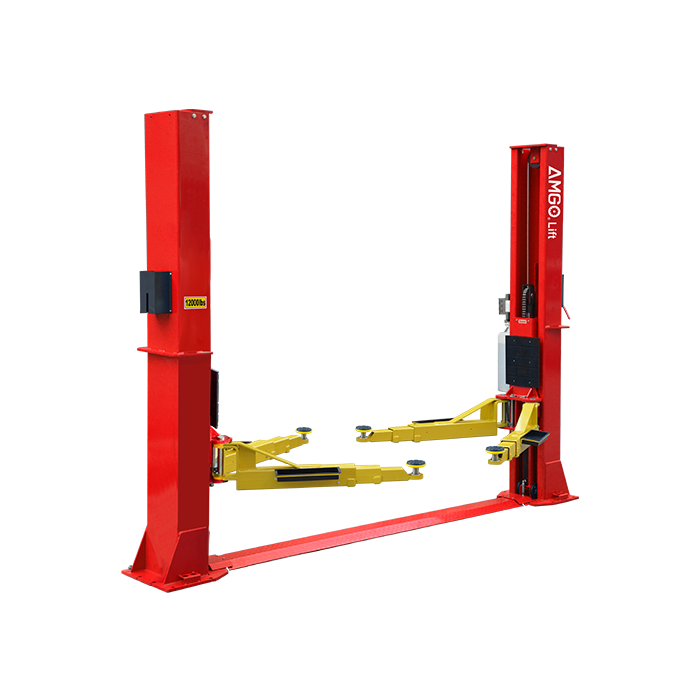

With a massive 12,000lb lifting capacity, the BP-12 is your best choice for heavy-duty lifting. It features durable 3-stage retractable arms and two width settings. Whether you’re working on a compact car, or full sized truck with wider or taller rigs, this lift delivers the versatility and strenth you need.
Tough, adjustable, and ready for anything.
Click to download Product Manual
Features
- Lifting capacity: 12,000 lbs;
- Sturdy three-stage retractable arms that works for various vehicles;
- Single-point manual safety lock release that simultaneously unlocks both columns from one side;
- Base plate design that can accommodate various vehicles;
- Exclusive: Two width settings for installation: width between columns 118 1/8″ and 123 1/2″;
- Self-lubricating UHMW polyethylene sliders
- Automatic arms restraint;
- Areo sync cables come standard;
- Comes with detachable toe guard and tool tray;
- Heavy-duty single-screw rubber pad and saddle adapter come standard;
- 3″ and 6″ extension adapters come standard.
Specifications
| Model BP-12 | Base plate two post lift | |
|---|---|---|
| Lifting Capacity | 12,000 Ibs | |
| Lifting Time | 65s | |
| Max. Lifting height: (w/o extension adapter) | A | 72 1/2"~73 7/8" |
| Max. Lifting height: (w/ extension adapter) | 81 9/16"~82 7/8" | |
| Max. lock height: (w/o extension adapter) | 70 9/16″~71 7/8" | |
| Max. lock height: (w/ extension adapter) | 79 9/16"~80 15/16" | |
| Overall Height | B | 122 1/2" |
| Overall Width | C | 145 3/8" (150 3/4") |
| Drive-Thru Clearance | D | 104 7/16" (109 13/16") |
| Width Between Columns | E | 118 1/8" (123 1/2") |
| Minimum Pad Height | F | 4 1/2" |
| Gross Weight | 2,238 Ibs | |
| Motor | 2.0HP | |
| QTY of Container | 20 Units/20'GP |
Detailed Image
Single-point manual safety lock release that simultaneously unlocks both columns from one side
Two installation widths available to choose from.
Four 3-stage retractable arms fit more vehicles. Toe guards and tool trays come standard.
The pulley with self-lubricating bronze bush, no need additional lubrication, virtually maintenance-free.
Heavy duty single-screw rubber pads and saddle adapters come standard.
3" and 6" extension adapters come standard.
Optional heavy duty extreme wide saddle adapter. Kits No. 21109
Optional base plate extention. Kits no.: 21501
Optional Extremely longe 3-stage arms . Kits no.: 10207063-02
Shipping Information
2 units/package, packing measurement (LxWxH) : 114 15/16" x 22 7/16" x 74 13/16" (Packed with power unit)
Attention to forklift loading and unloading
AMGO 5-3-2 Warranty: Industry-leading Service
AMGO Hydraulic Corporation offers one of the best warranties in the business with warranties as follows:
1. Steel Structure Components, Warranty for 5 Years;
2. Hydraulic Parts, Warranty for Three 3 Years:
3. Other Parts, electrical components, power unit, Warranty for 2 Years.
For detail warranty policy, please check here.
https://amgohyd.com/warranty-return-policy
