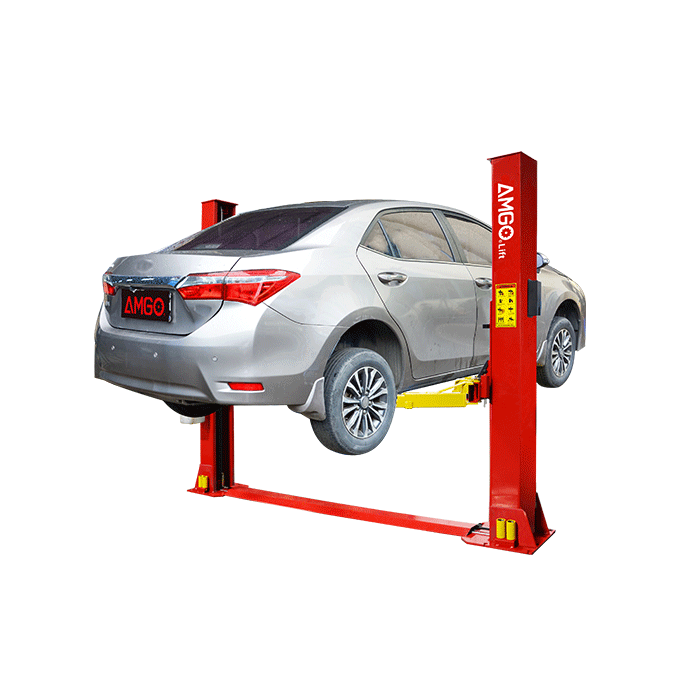

AMGO 9K 2-POST BASE PLATE LIFT
AMGO BP-9 is equipped with a dual safety lock structure and a single-point manual lock release mechanism, which ensures a safe and secure operation. The base plate design provides shorter columns to accommodate a ceiling height of 9ft or higher. Its symmetric 3-stage retractable arms offer large swing ranges to accommodate varying vehicles weighing up to 9000lbs.
Click to download Product Manual
Features
- Lifting capacity: 9,000 lbs;
- Symmetric four 3-stage retractable arms that fit more vehicles;
- Automatic arms restraint;
- Single-point manual safety lock release that simultaneously unlocks both columns from one side;
- Dual-safety lock structure guarantees more security;
- Self-lubricating UHMW polyethylene sliders;
- Areo sync cables come standard.
- Comes with detachable toe guard and tool tray;
- Standard single-screw rubber pad ( pin dia 1 1/2” ) with 3” extension adapters.
Specifications
| Model BP-9 | Base plate two post lift | |
|---|---|---|
| Lifting Capacity | 9,000 Ibs | |
| Lifting Time | 37s | |
| Max. Lifting height: (w/o extension adapter) | A | 71 1/4"~72 1/2" |
| Max. Lifting height: (w/ extension adapter) | 74 3/16"~75 1/2" | |
| Max. lock height: (w/o extension adapter) | 69 5/8″~70 15/16" | |
| Max. lock height: (w/ extension adapter) | 72 5/8"~73 7/8" | |
| Overall Height | B | 108" |
| Overall Width | C | 131 7/8" |
| Drive-Thru Clearance | D | 99" |
| Width Between Columns | E | 109 7/16" |
| Minimum Pad Height | F | 3 5/16" |
| Gross Weight | 1,321 Ibs | |
| Motor | 2.0HP | |
| QTY of Container | 25 Units / 20'GP |
Detailed Image
Single-point manual safety lock release that simultaneously unlocks both columns from one side.
ETL certified AMGO power unit.
Chain-drive hydraulic cylinder.
Automatic arm restraints
Symmetric 3-stage retractable arms are suitable for more vehicles.
AMGO's exclusive dual safety lock structure.
Single-screw rubber pad with pin dia. 1 1/2", comes with 3" extension adapter.
Toe guards and tool trays come standard
Optional base extention. Kits no. 20801
Shipping Information
2 units/package, packing measurement (LxWxH) : 112 3/8”x17 3/4"x58 1/4" (Packed with power unit)
3 units/package, packing measurement (LxWxH) : 112 3/8”x17 3/4"x86 7/16" (Packed with power unit)
Attention to forklift loading and unloading
AMGO 5-3-2 Warranty: Industry-leading Service
AMGO Hydraulic Corporation offers one of the best warranties in the business with warranties as follows:
1. Steel Structure Components, Warranty for 5 Years;
2. Hydraulic Parts, Warranty for Three 3 Years:
3. Other Parts, electrical components, power unit, Warranty for 2 Years.
