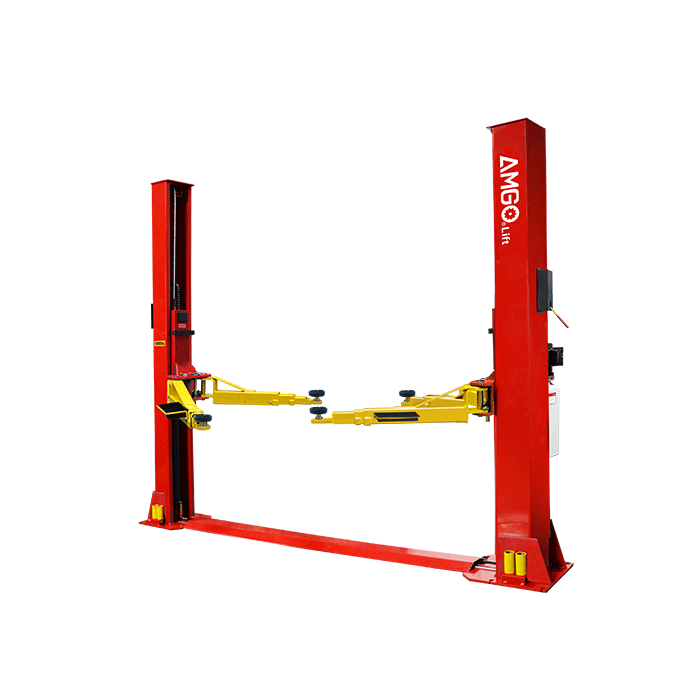

AMGO 9K 2-POST BASE PLATE LIFT - WIDER/TALLER
$2,920.00
SKU
AMG*BP-9X
This lift shares most of the features as the BP-9, but the BP-9X is more advanced, has wider construction, and is taller and stronger. The reinforced structure improves the lifting reliability and allows a variety of vehicles to be serviced. The base plate design can be installed in workshops or garages over 9.5’ of height.
Click to download Product Manual
Features
- Lifting capacity: 9,000 lbs;
- Commercial grade with an strong structure, designed for professional workshops and home garages;
- Symmetric four 3-stage retractable arms that fit more vehicles;
- Automatic arms restraint;
- Single-point manual safety lock release that simultaneously unlocks both columns from one side;
- Dual-safety lock structure guarantees more security;
- Self-lubricating UHMW polyethylene sliders;
- Areo sync cables come standard;
- Toe guards and tool trays come standard;
- Standard double-screw rubber pad ( pin dia 2″ ) with 3” extension adapters.
Specifications
| Model BP-9X | Base plate two post lift | |
|---|---|---|
| Lifting Capacity | 9,000 Ibs | |
| Lifting Time | 49s | |
| Max. Lifting height: (w/o extension adapter) | A | 76 3/8"~78 1/4" |
| Max. Lifting height: (w/ extension adapter) | 79 3/8"~81 1/4" | |
| Max. lock height: (w/o extension adapter) | 74 13/16“~76 11/16" | |
| Max. lock height: (w/ extension adapter) | 77 13/16"~79 11/16" | |
| Overall Height | B | 111 7/8" |
| Overall Width | C | 136 1/4" |
| Drive-Thru Clearance | D | 100 13/16” |
| Width Between Columns | E | 112 1/4" |
| Minimum Pad Height | F | 3 9/16" |
| Gross Weight | 1,563 Ibs | |
| Motor | 2.0HP | |
| QTY of Container | 20 Units / 20'GP |
Detailed Image
Single-point manual safety lock release that simultaneously unlocks both columns from one side.
ETL certified AMGO power unit.
Automatic arm restraints.
Symmetric four 3-stage retractable arms that fit more vehicles.
AMGO's exclusive dual safety lock structure.
Double-screw rubber pad with pin dia. 2", comes with 3" extension adapter.
Toe guards and tool trays come standard.
The optional saddle adapter. Kits No.: 21108
Optional 6" extension adapter. P/N: 1102504001-01
Optional base plate extention. Kits no.: 20903
Shipping Information
2 units/package, packing measurement (LxWxH) : 115 1/2" x 20 1/8" x 59 1/8" (Packed with power unit)
3 units/package, packing measurement (LxWxH) : 115 1/2" x 20 1/8" x 88 1/8" (Packed with power unit)
Attention to forklift loading and unloading
AMGO 5-3-2 Warranty: Industry-leading Service
AMGO Hydraulic Corporation offers one of the best warranties in the business with warranties as follows:
1. Steel Structure Components, Warranty for 5 Years;
2. Hydraulic Parts, Warranty for Three 3 Years:
3. Other Parts, electrical components, power unit, Warranty for 2 Years.
For detail warranty policy, please check here.
https://amgohyd.com/warranty-return-policy
