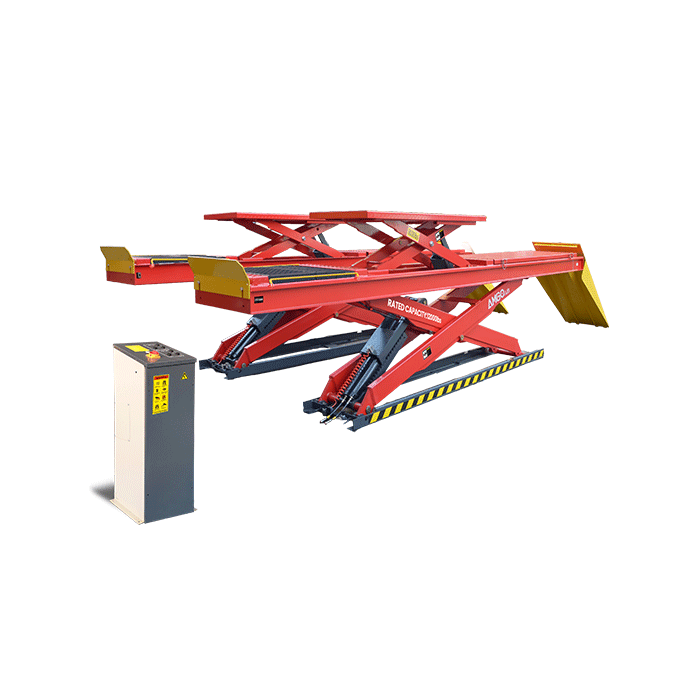

AMGO 12K DBL X SCISSOR DRIVE ON AUX RAISE PLATFORM ALIGNMENT LIFT
The AMGO DX-12A, designed for versatility, is one of the most robust lifts in its class, with a lifting capacity of up to 12,000 lbs. Its heavy construction features large non-skid diamond platforms and auxiliary lifting platforms that can lift all wheels off the runways for brake, tire, suspension, and alignment work. It is equipped with AMGO’s tailor designed large cylinders, ensuring high durability and powerful performance for your demanding daily tasks.
Click to download Product Manual
Features
- 12,000lbs capacity;
- Alignment service design with auxiliary scissors;
- Heavy duty design with robust X sicissors made of large steel tubes to ensure strong capabilities under heavy workloads ;
- Full rise design, offers comfortable experience work underbeath;
- Photocell device comes standard;
- Hydraulic cylinders built with hose burst valves for safety protection;
- Self-locking mechanical lock, released by air;
- Electric-hydraulic power system, with control power unit;
- Non-slip long and wide platforms accommodate various vehicles;
- Automatic safety stop device come standard;
Specifications
| Model | DX-12A | |
|---|---|---|
| Lifting Capacity | 12,000 Ibs | |
| Lifting Time | 64s | |
| Max. Lifting Height | A | 72 13/16" |
| Max. Lock Height | 71 1/16" | |
| Minimum Height | 12 5/8" | |
| Runway Length | B | 196 1/2" |
| Overall Width | C | 86 1/4" |
| Width Between Runways | D | 37" |
| Overall Length (Inc. Ramps) | E | 256" |
| Min. Four Wheel Align | F | 85 13/16" |
| Max. Four Wheel Align | G | 166 9/16" |
| Max. Two Wheel Align | H | 172 7/8" |
| Lifting Capacity Of Sub Lift | 9,000 lbs | |
| Lifting Height Of Sub Lift | I | 16 1/2" |
| Runway Length Of Sub Lift | J | 63"~74" |
| Gross Weight | 5,745 lbs | |
| Motor | 2.0HP |
Detailed Image
Heavy duty design with robust X sicissors made of large steel tubes to ensure strong capabilities under heavy workloads.
ETL certified AMGO power unit.
Extremely long and wide non-skid diamond platforms are capable of servicing varying wheelbase vehicles. Electro-air control system, mechanical safety locks.
Equipped with photocell configuration as standard to ensure the equalization of both platforms.
Extendable platforms of auxiliary scissors, are adjustable to accomodate various wheelbases.
Non-skid long and wide platforms accommodate various vehicles. Drive-in ramp assembly P/N: 11540610.
Optional: extension platform, P/N: PX002.
Optional air line kits (kits no.: PX004A).
Optional Turnplate. Kits No.: 40101. Each alignment lift need 2 pcs.
Shipping Information
2 units/package, packing measurement (LxWxH) : 201 3/16" x 29 7/8"x 80".
Attention to forklift loading and unloading.
1 unit/ctn, control cabinet packing measurement (LxWxH): 16 7/8”x 18 13/16"x 48 5/8".
AMGO 5-3-2 Warranty: Industry-leading Service
AMGO Hydraulic Corporation offers one of the best warranties in the business with warranties as follows:
1. Steel Structure Components, Warranty for 5 Years;
2. Hydraulic Parts, Warranty for Three 3 Years:
3. Other Parts, electrical components, power unit, Warranty for 2 Years.
For detail warranty policy, please check here.
