AMGO 5K SLIDING BRIDGE JACK HAND PUMP
$1,125.00
SKU
AMG*J5H

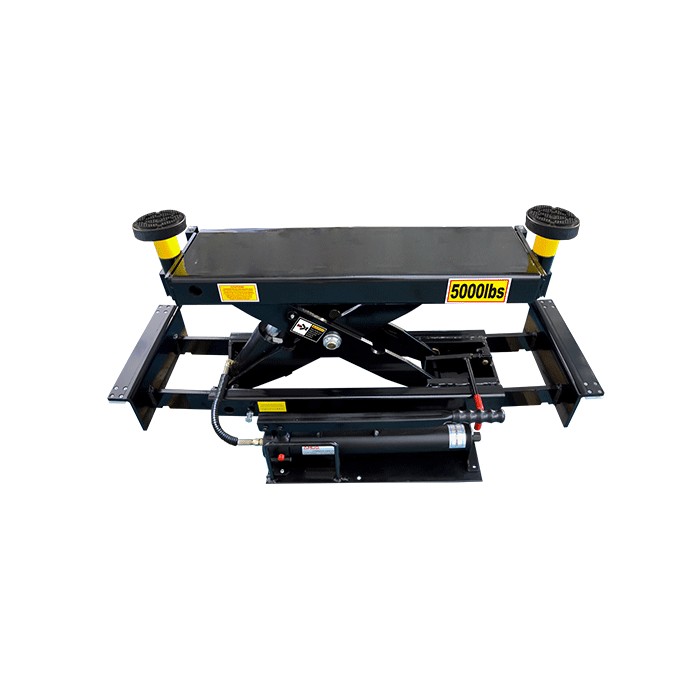

The AMGO J5H is specially designed for rail-less four-post lifts and scissor lifts. With a 5,000-lb capacity, a handle pump, and a smooth sliding function, it is an excellent option for servicing various lifts on the market.
Click to download Product Manual
Features
- Equipped with commercial-grade hand pump to maximize convenient operation;
- Extendable lower sliding assembly equipped with plastic sliders ensures smooth movement along the runways;
- Standard 2.5″ stackable adapters can meet your requirements to reach various vehicle’s chassis height;
- Standard sturdy rubber pads assembly;
- Adjustable arms for easy positioning on the recommended support points;
- Extendable lower sliding Assy. fits width of 35 5/8″ to 50 3/16″ between runways;
- Ergonomic guardrail can be used as a booster handle for gliding the jack.
Specifications
| Model | J5H | |
|---|---|---|
| Lifting Capacity | 5,000 Ibs | |
| Lifting Time | 50s | |
| Arm Pads Reach | A | 33 1/8"-53 7/16" |
| Min. Height | B | 8 11/16" |
| Support Base Width | C | 35 5/8"-50 3/16" |
| Min Rubber Pad Height | D | 5 1/16" |
| Max. Lifting Height (Without adapters) | E | 14" |
| Max. Lifting Height (With adapters) | 16 9/16" | |
| Overall Width | F | 20 1/16" |
| Gross Weight | 273 lbs | |
| Pump | Hand Pump |
Detailed Image
Commercial, easy-to-use, convenient hand pump works with no air source required.
Extendable lower sliding assy, equipped with plastic sliderbmakes this jack move smoothly and easily along the runways.
Handy manual safety lock helps you work comfortably at your preferred height.
The long-reach arm and lower sliding assembly are fully adjustable to accommodate virtually any 4-post or scissor lift.
An ergonomic guardrail makes moving this jack easy.
Stackable rubber pads assembly with 2.5" extension adapters.
Shipping Information
Single unit/package, packing measurement (LxWxH) :36 1/4" x 21 7/8" x 13 3/4""
6 units/package, packing measurement (LxWxH) : 36 1/4" x 21 7/8" x 65 3/8"
AMGO 5-3-2 Warranty: Industry-leading Service
AMGO Hydraulic Corporation offers one of the best warranties in the business with warranties as follows:
1. Steel Structure Components, Warranty for 5 Years;
2. Hydraulic Parts, Warranty for Three 3 Years:
3. Other Parts, electrical components, power unit, Warranty for 2 Years.
For detail warranty policy, please check here.
https://amgohyd.com/warranty-return-policy
