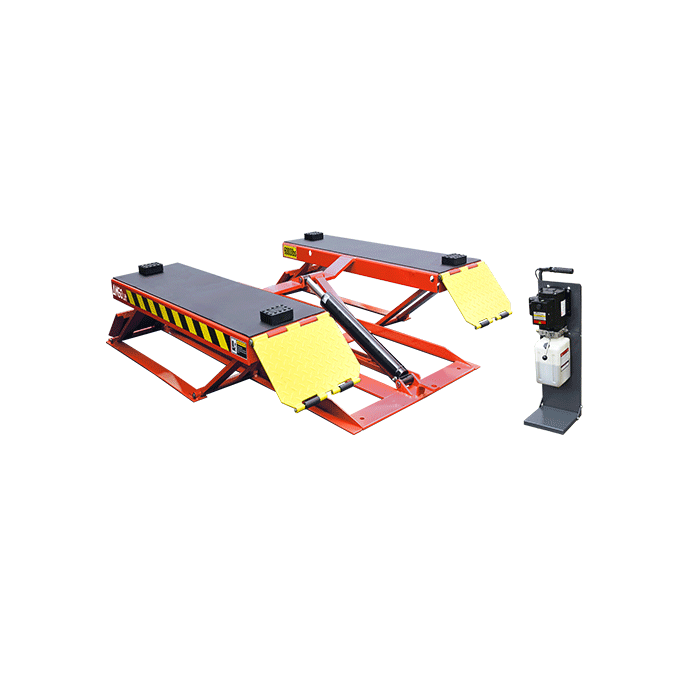

AMGO 6K LOW-RISE, LOW PROFILE PORTABLE PLATFORM LIFT
$2,200.00
SKU
AMG*LR06
The improved LR06 features a low-profile sunken-design frame and extended platforms that delivers a faster, smoother operation, perfect for your on-the-go shop. With a 6,000-lb capacity, the portable LR06 handles tires, suspension, and bodywork effortlessly. Power where you need it. Space where you want it.
Click to download Product Manual
Features
- Lifting capacity: 6,000lbs;
- Portable, newly designed dolly for easy maneuverability;
- Rugged platform and hard-rubber lifting pad ensure stable and quick lifting;
- Dual-approach ramps for maximum space efficiency;
- Mechanical locks with multiple lock points, and an automatic gravitational lock-release mechanism;
- 1-1/2″ Rubber pads come standard;
- Portable design, can easily moved to the service bay.
Specifications
| Model | LR06 | |
|---|---|---|
| Lifting Capacity | 6,000 Ibs | |
| Lifting Time | 56s | |
| Max. Lifting Height | A | 24 3/16" |
| Minimum Height | 4 1/8" | |
| Runway Length | B | 57 3/16" |
| Overall Length | C | 84 1/16" |
| Width between runways | D | 34 3/16" |
| Overall Width | E | 70 1/16" |
| Gross Weight | 827 lbs | |
| Motor | 110V/1.0HP |
Detailed Image
Versatile low-profile platform handles everything from standard cars to low-clearance vehicles
ETL certified AMGO power unit.
Mechanical locks with multiple lock points, and an automatic gravitational lock-release mechanism.
Portable design, can easily moved to the service bay.
Exclusively-designed detachable power unit stand and telescoping dolly.
1-1/2" Rubber pads come standard.
Shipping Information
8 units/package, packing measurement (LxWxH) : 84 7/16”x70 7/8"x69 5/16"
1 units/package, packing measurement (LxWxH) : 27 3/4”x11 3/4"x12 5/8""
Attention to forklift loading and unloading
AMGO 5-3-2 Warranty: Industry-leading Service
AMGO Hydraulic Corporation offers one of the best warranties in the business with warranties as follows:
1. Steel Structure Components, Warranty for 5 Years;
2. Hydraulic Parts, Warranty for Three 3 Years:
3. Other Parts, electrical components, power unit, Warranty for 2 Years.
For detail warranty policy, please check here.
https://amgohyd.com/warranty-return-policy
