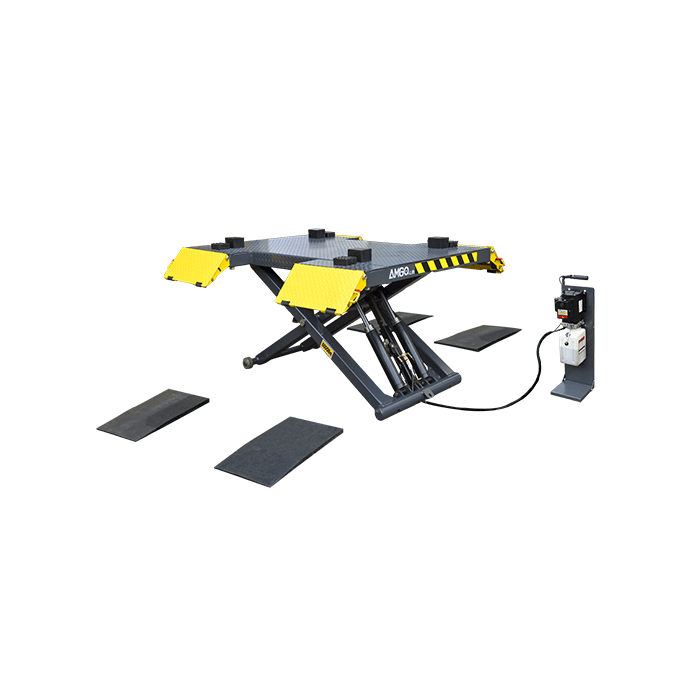

AMGO 6K MID-RISE PORTABLE PLATFORM SCISSOR LIFT
The arrival of AMGO MRP06 adds another excellent option for your mid-rise quick lifting needs. Its integrated platform comes with extension rubber ramps, allows a quick and easy access for even low clearance vehicles.
Click to download Product Manual
Features
• Lifting capacity: 6000lbs.
• AMGO ETL certified power unit.
• High quality dual cylinders are designed and made to a high standard.
• Sturdy non-skid platform enhances the work stability and enables quick lifting.
• AMGO’s patented power unit stand design improves mobility.The lift can be moved by one person easily.
• Both 1-1/2” and 3” rubber pads are included as standard.
• Mechanical lock with convenient manual release.
• Strengthened ramps can be flipped up and used as extended platform.
Specifications
| Model | MRP06 | |
|---|---|---|
| Lifting Capacity | 6,000 Ibs | |
| Lifting Time | 68s 26s |
|
| Max. Lifting Height | A | 41 3/4" |
| Max. Lock Height | 40 9/16" | |
| Minimum Height | 4 1/8" | |
| Overall Length (incl. Ramps) | B | 79 15/16" |
| Overall Length (not incl. Ramps) | C | 57 1/2" |
| Width between runways | D | 29 15/16" |
| Outside edge of runways | E | 77 3/16" |
| Overall Width | F | 80 5/16" |
| Gross Weight | 1,162 lbs | |
| Motor | 110V / 1.0HP 220V / 2.0HP |
Detailed Image
ETL certified AMGO power unit.
High quality dual cylinders are designed and made by high standard.
Sturdy non-skid platform enhances the work stability and enables quick lifting.
AMGO's patented power unit stand design improves mobility. The lift can be moved by one person easily.
Both 1-1/2” and 3” rubber pads are included standard.
Mechanical lock with convenient manual release.
Strengthened ramps can be flipped up and used as extended platform.
Standard extension rubber ramps .(P/N:SX004, each lift has 4 units SX004)
Shipping Information
1 units/package, packing measurement (LxWxH) : 89 3/8”x63 1/4"x9 1/2"
8 units/package, packing measurement (LxWxH) : 89 3/8”x63 1/4"x79 1/8"
1 units/package, packing measurement (LxWxH) : 27 3/4”x11 3/4"x12 5/8""
Attention to forklift loading and unloading
AMGO 5-3-2 Warranty: Industry-leading Service
AMGO Hydraulic Corporation offers one of the best warranties in the business with warranties as follows:
1. Steel Structure Components, Warranty for 5 Years;
2. Hydraulic Parts, Warranty for Three 3 Years:
3. Other Parts, electrical components, power unit, Warranty for 2 Years.
For detail warranty policy, please check here.
