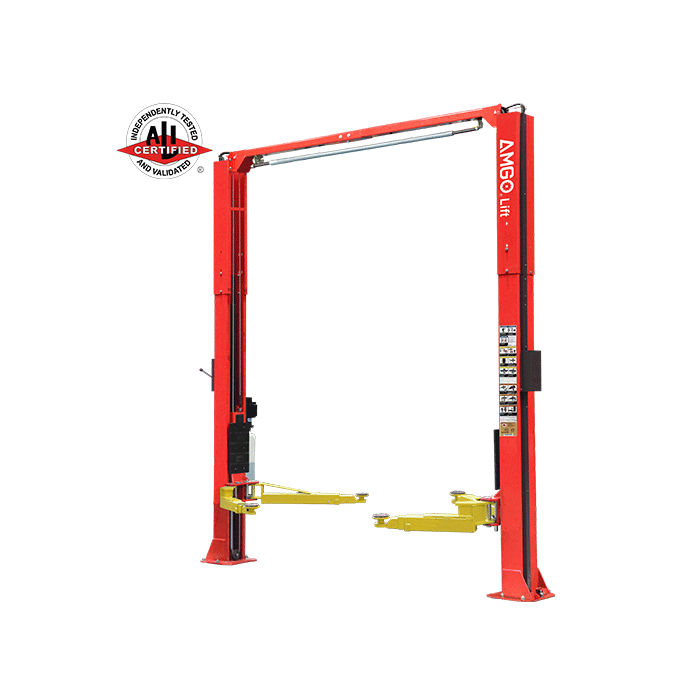

AMGO 10K 2-POST CLEAR FLOOR LIFT - ALI CERTIFIED
The new OH-10 is an industrial-grade two post lift that is ALI certified, representing AMGO’s professional expertise in development and manufacturing. The robust design features two standard height settings and two optional width settings for maximum versatility. It incorporates industry-leading features, including our patented Super Asymmetric technology and single-point safety release, prioritizing operator safety and stability, long-term durability and is easy to operate.
Click to download Product Manual
Features
- 10,000lbs capacity.
- High quality dual hydraulic direct-drive cylinders;
arms allow an asymmetric or symmetric configuration;- Aero cable used for synchronization;
- Single-point manual safety release mechanism, disengages both columns simultaneously from one side;
- Self-lubricating UHMW Polyethylene sliders;
- The clear-floor design provides an unobstructed workspace;
- Overhead safety shut-off device for maximum vehicle protection;
- Standard stackable rubber pads and 1.5”, 2.5”, 5”adapter;
- Two standard height settings accommodate varying ceiling heights;
- Toe guards and tool trays come standard.
Specifications
| Model OH-10 | Clear floor two post lift | |
|---|---|---|
| Lifting Capacity | 10,000 Ibs | |
| Lifting Time | 57s | |
| Max. Lifting height: (w/o extension adapter) | A | 71 1/2" |
| Max. Lifting height: (w/ extension adapter) | 80 1/2" | |
| Max. lock height: (w/o extension adapter) | 69 1/2" | |
| Max. lock height: (w/ extension adapter) | 78 1/2" | |
| Overall Height | B | 142 1/2" 150 1/2" |
| Overall Width | C | 135” |
| Drive-Thru Clearance | D | 99 1/2" |
| Width Between Columns | E | 112 3/16" |
| Minimum Pad Height | F | 3 15/16" |
| Gross Weight | 1,645 Ibs | |
| Motor | 2.0HP | |
| QTY of Container | 25 Units/20'GP |
Detailed Image
Single-point manual safety release mechanism, disengages both columns simultaneously from one side.
ETL certified AMGO power unit.
High quality dual hydraulic direct-drive cylinders.
Automatic arm restraints.
Super asymmetric arms allow to load different vehicles in an asymmetric or symmetric configuration.
Two standard height settings.
Standard stackable rubber pads and 1.5”, 2.5”, 5”adapter.
Optional width extension kits, that can extend the width from 112 3/16" to 118 1/8". Kits No.: 20906
Shipping Information
2 units/package, packing measurement (LxWxH) : 113 9/16" x 17 3/4" x 60 5/8" (Packed with power unit)
3 units/package, packing measurement (LxWxH) : 114 9/16" x 17 3/4" x 89 9/16" (Packed with power unit)
Attention to forklift loading and unloading
AMGO 5-3-2 Warranty: Industry-leading Service
AMGO Hydraulic Corporation offers one of the best warranties in the business with warranties as follows:
1. Steel Structure Components, Warranty for 5 Years;
2. Hydraulic Parts, Warranty for Three 3 Years:
3. Other Parts, electrical components, power unit, Warranty for 2 Years.
For detail warranty policy, please check here.
https://amgohyd.com/warranty-return-policy
| Shipping Length | 113 |
|---|---|
| Shipping Width | 18 |
| Shipping Height | 32 |
