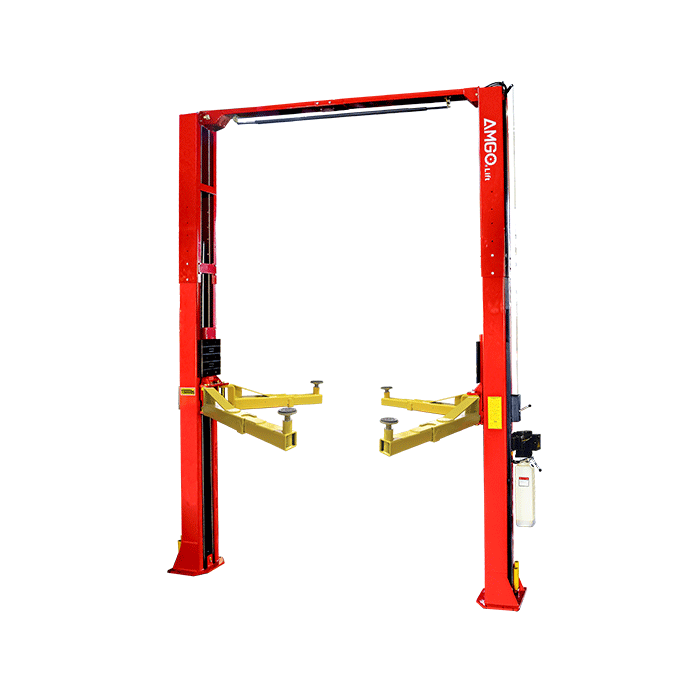

AMGO 15K 2-POST CLEAR FLOOR LIFT, HEIGHT SETTINGS 174",186",198"
The OH-15 stands out in the AMGO lineup for its superior heavy lifting capabilities. Built with a heavy-duty construction, standard single screw rubber pads and heavy-duty saddle adapters, it fulfills diverse lifting needs – from vans, to commercial vehicles and heavy-duty trucks. It incorporates AMGO’s 3-in-1 technology, simplifying installation and providing three tall height settings to accommodate different vehicles.
Click to download Product Manual
Features
- Lifting capacity: 15,000 lbs;
- High quality dual hydraulic direct-drive cylinders;
- 4 two-stage sturdy arms are capable to lift trucks with different wheel bases;
- Single-point manual safety lock release that simultaneously unlocks both columns from one side;
- The clear-floor design provides an unobstructed workspace;
- The overhead safety shut-off device for maximum vehicle protection;
- Exclusive: adjustable three height setting accommodates varying service ceiling heights;
- Self-lubricating UHMW polyethylene sliders
- Automatic arms restraint;
- Aero sync cables come standard;
- Detachable toe guard and tool tray come standard;
- Both heavy-duty single-screw rubber pad and saddle adapter come as standard;
- Both 3” and 6” extension adapters come as standard.
Specifications
| Model OH-15 | Clear floor two post lift | |
|---|---|---|
| Lifting Capacity | 15,000 Ibs | |
| Lifting Time | 84s | |
| Max. Lifting height: (w/o extension adapter) | A | 74 7/8"~76 1/4" |
| Max. Lifting height: (w/ extension adapter) | 83 7/8"~85 1/4" | |
| Max. lock height: (w/o extension adapter) | 72 15/16″~74 1/4" | |
| Max. lock height: (w/ extension adapter) | 81 15/16"~83 1/4" | |
| Overall Height: (low setting) | B | 174" |
| Overall Height: (medium setting) | 186" | |
| Overall Height: (high setting) | 198" | |
| Overall Width | C | 150 3/4" |
| Drive-Thru Clearance | D | 109 3/4" |
| Width Between Columns | E | 123 1/2" |
| Minimum Pad Height | F | 6 7/8" |
| Gross Weight | 2,423 Ibs | |
| Motor | 2.0HP | |
| QTY of Container | 16 Units/20'GP |
Detailed Image
Single-point manual safety lock release that simultaneously unlocks both columns from one side
ETL certified AMGO power unit.
High quality dual hydraulic direct-drive cylinders.
Automatic arm restraints.
Standard heavy-duty 2-stage arms (P/N of Lifting arm assy. :10217165-03).
Standard includes both heavy-duty single screw rubber pad and saddle adapter.
Standard includes both 3" and 6" extension adapters
Optional heavy duty extreme wide saddle adapter. Kits No. 21109
Optional base extension kits. Kits no. 21501.
Shipping Information
2 units/package, packing measurement (LxWxH) : 113 3/4" x 21 1/4" x 80 3/4" (Packed with power unit)
Attention to forklift loading and unloading
AMGO 5-3-2 Warranty: Industry-leading Service
AMGO Hydraulic Corporation offers one of the best warranties in the business with warranties as follows:
1. Steel Structure Components, Warranty for 5 Years;
2. Hydraulic Parts, Warranty for Three 3 Years:
3. Other Parts, electrical components, power unit, Warranty for 2 Years.
For detail warranty policy, please check here.
https://amgohyd.com/warranty-return-policy
| Shipping Length | 114 |
|---|---|
| Shipping Width | 22 |
| Shipping Height | 42 |
