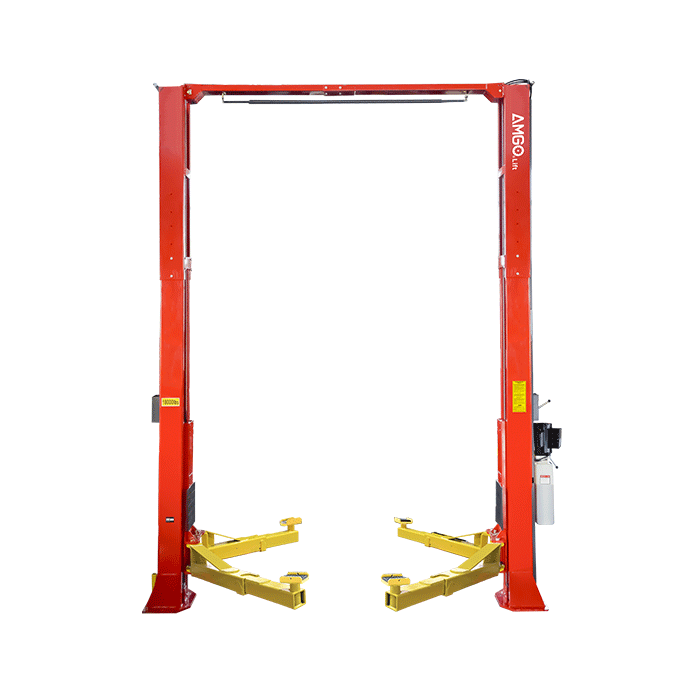

AMGO 18K 2-POST CLEAR FLOOR LIFT, HEIGHT SETTINGS 174",186",198"

Features

• Lifting capacity: 18,000 lbs;
• High quality dual hydraulic direct-drive cylinders;
• 4 two-stage sturdy arms ensure the heavy load stability;
• Single-point manual safety lock release that simultaneously unlocks both columns from one side;
• The clear-floor design provides an unobstructed workspace;
• The overhead safety shut-off device for maximum vehicle protection;
• Exclusive: adjustable three height setting accommodates varying service ceiling heights;
• Extremely long carriages are equipped to enhance the stability and durability;
• Self-lubricating UHMW polyethylene sliders
• Automatic arms restraint;
• Aero sync cables come standard;
• Detachable toe guard and tool tray come standard;
• Both heavy-duty single-screw rubber pad and saddle adapter come as standard;
• Both 3” and 6” extension adapters come as standard.

Specifications

Model OH-18		Clear floor two post lift
Lifting Capacity		18,000 Ibs
Lifting Time		84s
Max. Lifting height: (w/o extension adapter)	A	74 7/8"~76 1/4"
Max. Lifting height: (w/ extension adapter)		83 7/8"~ 85 1/4"
Max. lock height: (w/o extension adapter)		72 7/8"~ 74 1/4"
Max. lock height: (w/ extension adapter)		81 7/8"~ 83 1/4"
Overall Height: (low setting)	B	174"
Overall Height: (medium setting)		186"
Overall Height: (high setting)		198"
Overall Width	C	151 15/16"
Drive-Thru Clearance	D	110 7/16"
Width Between Columns	E	123 1/2"
Minimum Pad Height	F	6 7/8"
Gross Weight		2,906 Ibs
Motor		2.0HP
QTY of Container		24 Units/40'GP

Detailed Image

Single-point manual safety lock release that simultaneously unlocks both columns from one side

ETL certified AMGO power unit.

High quality dual hydraulic direct-drive cylinders.

Automatic arm restraints.

Standard heavy-duty 2-stage arms (P/N of Lifting arm assy. :1102794001C-03).

Standard heavy-duty single screw rubber pads and saddle adapters.

Standard 3" and 6" extension adapters.

Optional heavy duty extreme wide saddle adapter. Kits No. 21109

Shipping Information

2 units/package, packing measurement (LxWxH) : 133 7/8" x 22 1/2" x 74 3/8" (Packed with power unit)

Attention to forklift loading and unloading
