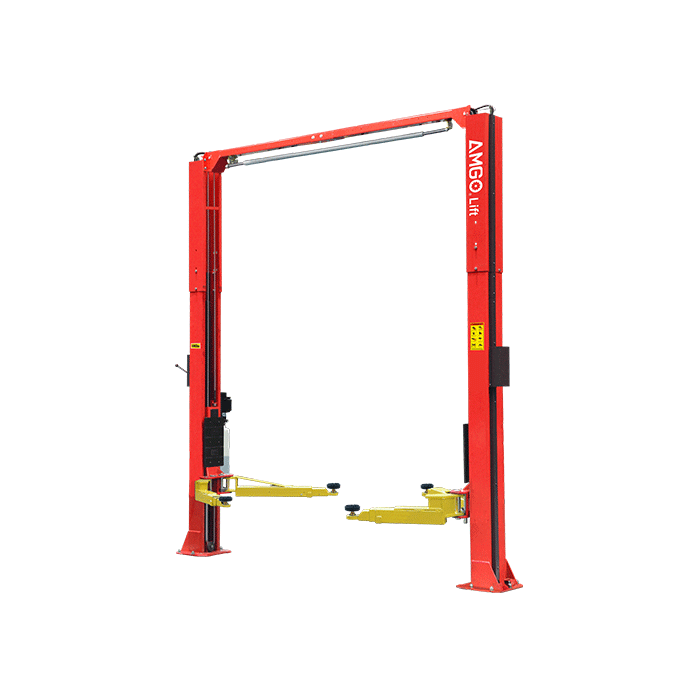

AMGO 9K 2-POST CLEAR FLOOR LIFT
$2,745.00
SKU
AMG*OH-9
This versatile design optimizes shop or garage space with two standard height settings accommodate different ceiling heights. It incorporates Super Asymmetric technology for convenient symmetric or asymmetric loading. With 9000lbs capacity, its sturdy structure also supports width and height extensions, catering to diverse needs.
Click to download Product Manual
Features
- Lifting capacity: 9,000 lbs;
- High quality dual hydraulic direct-drive cylinders;
- The
arms allow symmetrical or asymmetrical loading, ensuring adequate door clearance ; - Single-point manual safety lock release that simultaneously unlocks both columns from one side;
- The clear-floor design provides an unobstructed workspace;
- The overhead safety shut-off device for maximum vehicle protection;
- Two standard height settings that accommodate varying ceiling heights;
- Self-lubricating UHMW polyethylene sliders
- Automatic arms restraint;
- Areo sync cables come standard;
- Detachable toe guard and tool tray come standard;
- Standard double-screw rubber pad ( pin dia 2″ ) with 3″ extension adapters.
Specifications
| Model OH-9 | Clear floor two post lift | |
|---|---|---|
| Lifting Capacity | 9,000 Ibs | |
| Lifting Time | 57s | |
| Max. Lifting height: (w/o extension adapter) | A | 71 7/16"~73 3/8" |
| Max. Lifting height: (w/ extension adapter) | 74 7/16"~76 5/16" | |
| Max. lock height: (w/o extension adapter) | 69 5/8″~71 1/2" | |
| Max. lock height: (w/ extension adapter) | 72 5/8"~74 1/2" | |
| Overall Height | B | 143 1/8" (151") |
| Overall Width | C | 135” |
| Drive-Thru Clearance | D | 99 1/2" |
| Width Between Columns | E | 112 3/16" |
| Minimum Pad Height | F | 3 9/16" |
| Gross Weight | 1,493 Ibs | |
| Motor | 2.0HP | |
| QTY of Container | 25 Units/20'GP |
Detailed Image
Single-point manual safety lock release that simultaneously unlocks both columns from one side.
ETL certified AMGO power unit.
High quality dual hydraulic direct-drive cylinders.
Automatic arm restraints.
Super asymmetric arms allow to load different vehicles in an asymmetric or symmetric configuration.
Two standard height settings .
Toe guards and tool trays come standard.
Standard double-screw rubber pad (pin dia 2") with 3" extension adapters.
The optional saddle adapter. Kits No.: 21108
Optional 6" extension adapter, P/N: 1102504001-01
Optional width extension kits, that can extend the width from 112 3/16" to 118 1/8". Kits No.: 20906
Optional Height Extension Kits. With these kits the overall height is adjusted from 150 7/16" to 174 7/16". Kits No.: 20902
Shipping Information
2 units/package, packing measurement (LxWxH) : 114 9/16" x 17 3/4" x 60 7/16" (Packed with power unit)
3 units/package, packing measurement (LxWxH) : 114 9/16" x 17 3/4" x 89 3/8" (Packed with power unit)
Attention to forklift loading and unloading
AMGO 5-3-2 Warranty: Industry-leading Service
AMGO Hydraulic Corporation offers one of the best warranties in the business with warranties as follows:
1. Steel Structure Components, Warranty for 5 Years;
2. Hydraulic Parts, Warranty for Three 3 Years:
3. Other Parts, electrical components, power unit, Warranty for 2 Years.
For detail warranty policy, please check here.
https://amgohyd.com/warranty-return-policy
