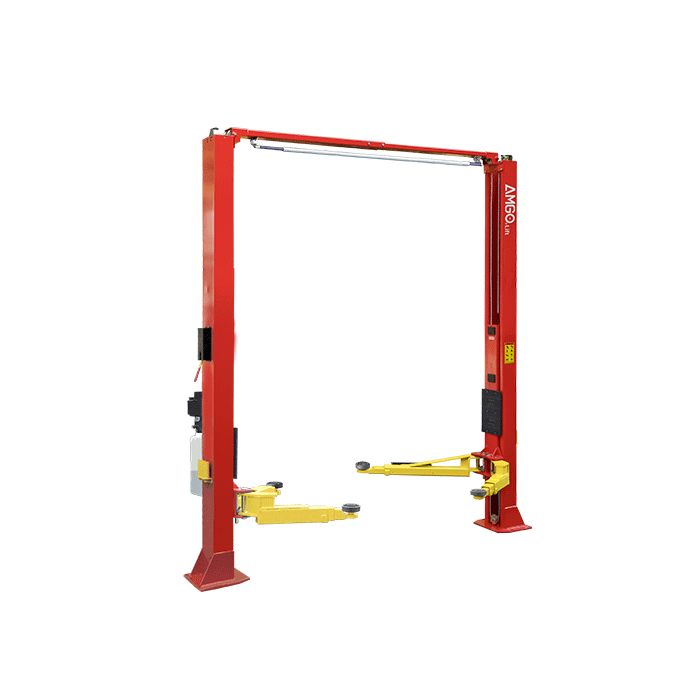

AMGO 10K 2-POST CLEAR FLOOR LIFT
AMGO OHX-10 is well known for its excellent performance in elaborately structure. It boasts 10000lbs capacity, is built with single-piece column, split-structure top beam and extremely long carriages that ensuring easier installation and easier maintenance. Suitable for workshop and garage over 12ft, it offers width extension as option, and features AMGO Super Asymmetric technology for added convenience during loading.
Click to download Product Manual
Features
- Lifting capacity: 10,000 lbs;
- High quality dual hydraulic direct-drive cylinders;
- The
arms allow an symmetrical or an asymmetrical loading, ensuring adequate door clearance; - Single-point manual safety lock release that simultaneously unlocks both columns from one side;
- The clear-floor design provides an unobstructed workspace;
- The overhead safety shut-off device for maximum vehicle protection;
- Easy installation with a single column piece;
- Self-lubricating UHMW polyethylene sliders;
- Automatic arms restraint;
- Standard areo sync cables;
- Detachable toe guard and tool tray come standard;
- Standard double-screw rubber pad ( pin dia 2” ) with 3” extension adapters.
Specifications
| Model OHX-10 | Clear floor two post lift | |
|---|---|---|
| Lifting Capacity | 10,000 Ibs | |
| Lifting Time | 57s | |
| Max. Lifting height: (w/o extension adapter) | A | 71 7/16"~73 3/8" |
| Max. Lifting height: (w/ extension adapter) | 74 7/16"~76 5/16" | |
| Max. lock height: (w/o extension adapter) | 69 5/8″~71 1/2" | |
| Max. lock height: (w/ extension adapter) | 72 5/8"~74 1/2" | |
| Overall Height | B | 144" |
| Overall Width | C | 134 15/16" (140 7/8") |
| Drive-Thru Clearance | D | 99 13/16" (105 11/16") |
| Width Between Columns | E | 112 1/4" (118 1/8") |
| Minimum Pad Height | F | 3 9/16" |
| Gross Weight | 1,592 Ibs | |
| Motor | 2.0HP | |
| QTY of Container | 15 Units/20'GP |
Detailed Image
Single-point manual safety lock release that simultaneously unlocks both columns from one side
ETL certified AMGO power unit.
High quality dual hydraulic direct-drive cylinders
Automatic arm restraints.
Super asymmetric arms allow an asymmetric or symmetric loading.
Extremely long carriages, more than twice the length of comparable models on the market.
The top beam is designed adjustable to fit different width demand. Overhead safety shut-off device for maximum vehicle protection.
Standard double-screw rubber pad (pin dia 2") with 3" extension adapters.
Optional saddle adapter. Kits No.: 21108
Optional 6" extension adapter, P/N: 1102504001-01
Optional width extension kits, that can extend the width between columns from 112 1/4" to 118 1/8". Kits No.: 21004
Shipping Information
2 units/package, packing measurement (LxWxH) : 145 1/16" x 17 3/4" x 61" (Packed with power unit)
3 units/package, packing measurement (LxWxH) : 145 1/16" x 17 3/4" x 89 1/16" (Packed with power unit)
Attention to forklift loading and unloading
AMGO 5-3-2 Warranty: Industry-leading Service
AMGO Hydraulic Corporation offers one of the best warranties in the business with warranties as follows:
1. Steel Structure Components, Warranty for 5 Years;
2. Hydraulic Parts, Warranty for Three 3 Years:
3. Other Parts, electrical components, power unit, Warranty for 2 Years.
For detail warranty policy, please check here.
https://amgohyd.com/warranty-return-policy
