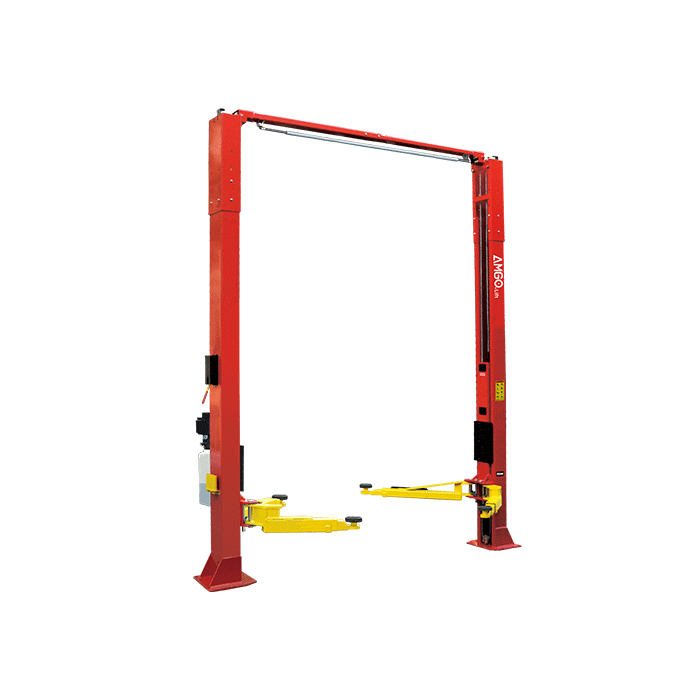

AMGO 10K 2-POST CLEAR FLOOR LIFT - HIGH CLEARANCE

Features

• Lifting capacity: 10,000 lbs;
• High quality dual hydraulic direct-drive cylinders;
• The   arms allow a symmetrical or an asymmetrical loading, ensuring adequate door clearance;
• Single-point manual safety lock release that simultaneously unlocks both columns from one side;
• The clear-floor design provides an unobstructed workspace;
• The overhead safety shut-off device for maximum vehicle protection;
• Two standard height settings accommodate various ceiling heights;
• Additional optional kits are available to extend the height and width to support a more comprehensive service;
• Self-lubricating UHMW polyethylene sliders;
• Automatic arms restraint;
• Areo sync cables comestandard;
• Detachable toe guard and tool tray come standard;
• Standard double-screw rubber pad ( pin dia 2” ) with 3” extension adapters.

Specifications

Model OHX-10H		Clear floor two post lift
Lifting Capacity		10,000 Ibs
Lifting Time		63s
Max. Lifting height: (w/o extension adapter)	A	78 3/4"~ 80 5/8"
Max. Lifting height: (w/ extension adapter)		81 3/4"~ 83 5/8"
Max. lock height: (w/o extension adapter)		77 3/16"~ 79 1/16"
Max. lock height: (w/ extension adapter)		80 3/16"~ 82 1/16"
Overall Height	B	157"~167 3/16"
Overall Width	C	134 15/16" (140 7/8")
Drive-Thru Clearance	D	99 13/16" (105 11/16")
Width Between Columns	E	112 1/4" (118 1/8")
Minimum Pad Height	F	3 9/16"
Gross Weight		1,709 Ibs
Motor		2.0HP
QTY of Container		15 Units/20'GP

Detailed Image

Single-point manual safety lock release that simultaneously unlocks both columns from one side.

ETL certified AMGO power unit.

High quality dual hydraulic direct-drive cylinders.

Automatic arm restraints.

Super asymmetric arms allow to load different vehicles in an asymmetric or symmetric configuration.

Two standard height settings accommodate various ceiling height.

Extremely long carriages, more than twice the length of comparable models on the market.

Standard double-screw rubber pad (pin dia 2") with 3" extension adapters.

Optional saddle adapter. Kits No.: 21108

Optional 6" extension adapter, P/N: 1102504001-01.

Optional width extension kits, that can extend the width between columns from 112 1/4" to 118 1/8". Kits No.: 21005

Shipping Information

2 units/package, packing measurement (LxWxH) : 145 1/16" x 17 3/4" x 61" (Packed with power unit)

3 units/package, packing measurement (LxWxH) : 145 1/16" x 17 3/4" x 89 1/16" (Packed with power unit)

Attention to forklift loading and unloading
