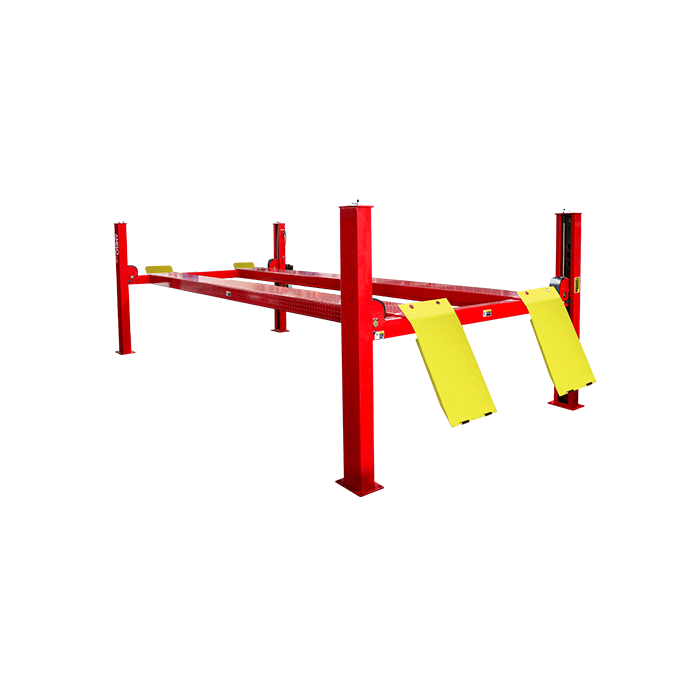

AMGO 12K - 4-POST STANDARD LIFT
The commercial-grade Pro-12 is the flawless choice for your daily quick servicing of cars, SUVs, pickups and Vans that can handle up to 12,000lbs. It features the stepless width adjustment technology to fit various wheel tracks, and its heavy-duty construction offers rugged durability and ensures maximum safety. It’s your ideal service tool for both garages and service shops.
Click to download Product Manual
Features
• 12,000 lbs capacity;
• AMGO ETL certified power unit comes as standard;
• Mechanical self-locking safety device with air-driven lock release;
• Primary multiple safety locks and cable-slack protection system come standard;
• Cable-driven, utilizing aircraft standard high quality cables;
• Hydraulic cylinder is designed and made to high standard, utilizing high quality oil seals and compensation valve;
• Non-skid diamond platforms;
• Stepless adjustable width between platforms.
Specifications
| Model | Pro-12 | |
|---|---|---|
| Lifting Capacity | 12,000 Ibs | |
| Lifting Time | 63s | |
| Overall Length (Inc Ramps) | A | 239 13/16" |
| Outside Edge of Crossbeams | B | 197 3/4" |
| Overall Width | C | 126 5/16" |
| Width Between Columns | D | 112 1/4" |
| Max. Lifting Height | E | 74 7/16" |
| Max. Lock Height to top of runway | 71 1/4" | |
| Overall Height | F | 86" |
| Minimum Height | G | 6 11/16" |
| Max. Underneath Height | H | 68 7/8" |
| Max. Lock Underneath Runway | 65 3/4" | |
| Drive-Thru Clearance | I | 98 3/8" |
| Width Between Runways | J | 43 5/16" Min. 38" Max. 50 7/8" |
| Outside Edge of Runways | K | 83 5/16" Min. 78" Max. 90 7/8" |
| Gross Weight | 2,361 lbs | |
| Motor | 2.0HP |
Detailed Image
Oil-water separator and solenoid air valve are installed on the power side column.
ETL certified AMGO power unit.
Primary multiple safety locks and cable-slack protection system come standard.
Hydraulic cylinder is designed and made to high standard, utilizing high quality oil seals and compensation valve.
Stepless adjustable width between platforms.
Non-slip diamond platforms come as standard.
Optional extension platform adds 26" in lenght to the platform. Kits No.:41203
Optional Air line kits All AMGO four post lifts are designed to use the air line kits for rolling jack. Kits No.:40102A
Optional Rolling Jacks RJ-6H: manual hydraulic type,6,000lbs capacity. RJ-6A: pneumatic hydraulic type,6,000lbs capacity.
Shipping Information
1 units/package, packing measurement (LxWxH) : 203 9/16"x 22 1/16"x28 1/2". Packed with Power Unit.
3 units/package, packing measurement (LxWxH) : 203 9/16"x 22 1/16"x 84 1/16""
Attention to forklift loading and unloading.
AMGO 5-3-2 Warranty: Industry-leading Service
AMGO Hydraulic Corporation offers one of the best warranties in the business with warranties as follows:
1. Steel Structure Components, Warranty for 5 Years;
2. Hydraulic Parts, Warranty for Three 3 Years:
3. Other Parts, electrical components, power unit, Warranty for 2 Years.
For detail warranty policy, please check here.
https://amgohyd.com/warranty-return-policy
| Shipping Length | 208 |
|---|---|
| Shipping Width | 23 |
| Shipping Height | 32 |
