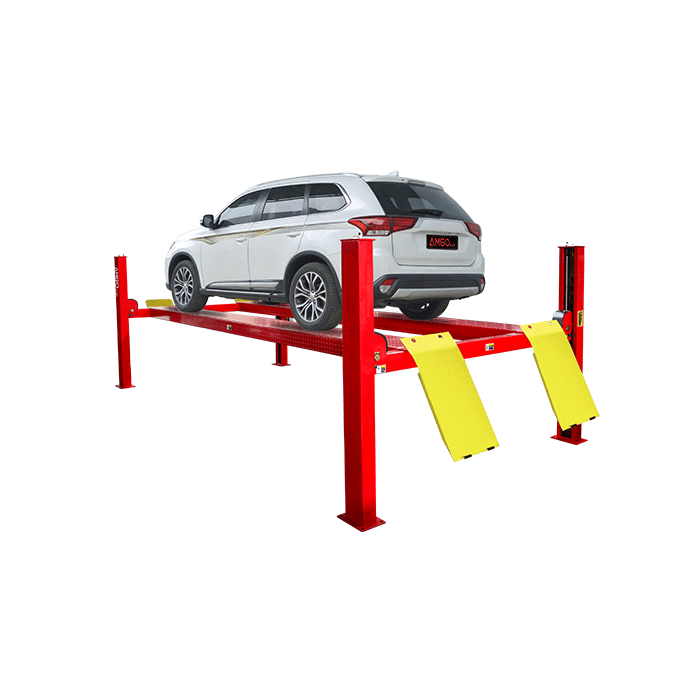

AMGO 12K - 4POST EXTENDED DRIVE THROUGH LIFT
The Pro-12SX enhances the comfort to drive an vehicle on the non-skid platforms by offering a drive-through width of over 100″. It surpasses most similar options available in the market. The PRO-12SX, with a capacity of up to 12,000 lbs to accommodate various vehicles, is undoubtedly the ideal companion for garage and shop owners.
Click to download Product Manual
Features
• 12,000 lbs capacity, extremely wide design with a width more than 118″ betwwen columns
• AMGO ETL certified power unit comes as standard;
• Mechanical self-locking safety device with air-driven lock release;
• Primary multiple safety locks and cable-slack protection system come standard;
• Cable-driven, utilizing aircraft standard high quality cables;
• Hydraulic cylinder is designed and made to high standard, utilizing high quality oil seals and compensation valve;
• Non-skid diamond platforms;
• Stepless adjustable width between platforms.
Specifications
| Model | Pro-12SX | |
|---|---|---|
| Lifting Capacity | 12,000 Ibs | |
| Lifting Time | 45s | |
| Overall Length (Inc Ramps) | A | 232 5/8" |
| Outside Edge of Crossbeams | B | 190 9/16" |
| Overall Width | C | 132 1/8" |
| Width Between Columns | D | 118 1/8" |
| Max. Lifting Height | E | 74 7/16" |
| Max. Lock Height to top of runway | 71 1/4" | |
| Overall Height | F | 86" |
| Minimum Height | G | 6 11/16" |
| Max. Underneath Height | H | 68 7/8" |
| Max. Lock Underneath Runway | 65 3/4" | |
| Drive-Thru Clearance | I | 104 3/16" |
| Width Between Runways | J | 43 5/16" Min. 35 7/16" Max. 53 3/4" |
| Outside Edge of Runways | K | 83 5/16" Min. 75 7/16" Max. 93 3/4" |
| Gross Weight | 2,229 lbs | |
| Motor | 2.0HP |
Detailed Image
Oil-water separator and solenoid air valve are installed on the power side column.
ETL certified AMGO power unit.
Primary multiple safety locks and cable-slack protection system come standard
Hydraulic cylinder is designed and made to high standard, utilizing high quality oil seals and compensation valve
Stepless adjustable width between platforms.
Extreme width between columns:118 1/8"
Optional extension platform, adds 26" in length to the platform. Kits No.:40903
Optional Air line kits All AMGO four post lifts are designed to use the air line kits for rolling jack. Kits No.:40102A
Optional Rolling Jacks RJ-6H: manual hydraulic type,6,000lbs capacity. RJ-6A: pneumatic hydraulic type,6,000lbs capacity.
Shipping Information
1 units/package, packing measurement (LxWxH) : 199 5/8"x22 1/16"x28 1/2", Packed with power unit.
3 units/package, packing measurement (LxWxH) : 199 5/8"x22 1/1x84 7/16"
Attention to forklift loading and unloading.
AMGO 5-3-2 Warranty: Industry-leading Service
AMGO Hydraulic Corporation offers one of the best warranties in the business with warranties as follows:
1. Steel Structure Components, Warranty for 5 Years;
2. Hydraulic Parts, Warranty for Three 3 Years:
3. Other Parts, electrical components, power unit, Warranty for 2 Years.
