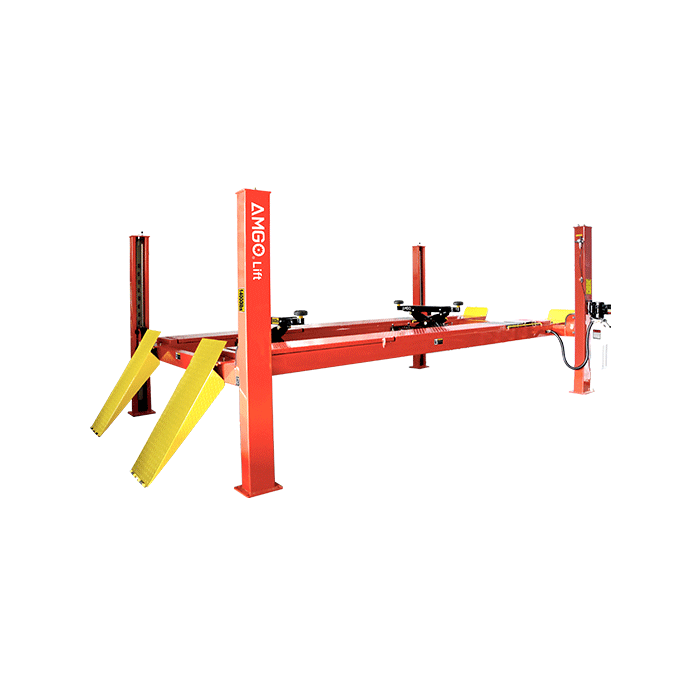

AMGO 14K - 4-POST EXTENDED RUNWAY ALIGNMENT LIFT
Building on the trusted PRO-14, the PRO-14A adds integrated slip plates and turnplate pockets for professional-grade wheel alignment. Designed with extended runways, this commercial model effortlessly accommodates even the longest wheelbases—making it the complete solution for servicing trucks, RVs, and everything in between.
Click to download Product Manual
Features
• 14,000 lbs capacity.
• AMGO ETL certified power unit comes as standard.
• Mechanical self-locking safety device with air-driven lock release.
• Primary multiple safety locks and cable-slack protection system come standard.
• Cable-driven, utilizing aircraft standard high quality cables.
• Hydraulic cylinder is designed and made to high standard, utilizing high quality oil seals and compensation valve.
• Non-skid diamond platforms.
• Integrated slip plates and adjustable turnplate pockets.
Specifications
| Model | PRO-14A | |
|---|---|---|
| Lifting Capacity | 14,000 Ibs | |
| Lifting Time | 81s | |
| Overall Length (Inc Ramps) | A | 257 1/2" |
| Runway Length | B | 200 1/2" |
| Overall Width | C | 130 7/8" |
| Width Between Columns | D | 116" |
| Max. Lifting Height | E | 77 9/16" |
| Max. Lock Height to top of runway | 74 7/16" | |
| Overall Height | F | 86 3/16" |
| Minimum Height | G | 9 13/16" |
| Max. Underneath Height | H | 68 7/8" |
| Max. Lock Underneath Runway | 65 3/4" | |
| Drive-Thru Clearance | I | 102 1/16" |
| Width Between Runways | J | 46" |
| Outside Edge of Runways | K | 86" |
| Min. Four Wheel Align | L | 92 5/8" |
| Max. Four Wheel Align | M | 177 3/16" |
| Max. Two Wheel Align | N | 178 9/16" |
| Gross Weight | 3,560 lbs | |
| Motor | 2.0HP |
Detailed Image
Oil-water separator and solenoid air valve are installed on the power side column.
ETL certified AMGO power unit.
Primary multiple safety locks and cable-slack protection system come standard.
Hydraulic cylinder is designed and made to high standard, utilizing high quality oil seals and compensation valve.
Non-slip diamond platforms come as standard.
Adjustable turnplate blocks to fit various wheel bases vehicles.
Optional extension platform kit. Kits No.: 41801-01.
Optional Turnplate, each alignment lift need two units. Kits No.: 40101
Optional adjustable blocks used with extension platform , Kits No. 41803
Optional Air line kits All AMGO four post lifts are designed to use the air line kits for rolling jack. Kits No.:40102A
Optional Rolling Jacks RJ-8A: pneumatic hydraulic type, 8,000lbs capacity.
Shipping Information
1 units/package, packing measurement (LxWxH) : 247 3/16"x 22 5/8"x 33 1/16". Packed with Power Unit.
2 units/package, packing measurement (LxWxH) : 247 3/16"x 22 5/8"x 66 1/8"
After the machine is pulled out from the container, use the forklift to lift the machine from the middle position.
Use a forklift to lift up one end of the machine about 2"-5" from the ground, and pull the machine out from the container with the assistance of lifting belt or other cables.
Wrong operation: It is not allowed to use the forklift to lift the machine completely from one end, which will easily cause the machine to be deformation.
AMGO 5-3-2 Warranty: Industry-leading Service
AMGO Hydraulic Corporation offers one of the best warranties in the business with warranties as follows:
1. Steel Structure Components, Warranty for 5 Years;
2. Hydraulic Parts, Warranty for Three 3 Years:
3. Other Parts, electrical components, power unit, Warranty for 2 Years.
For detail warranty policy, please check here.
