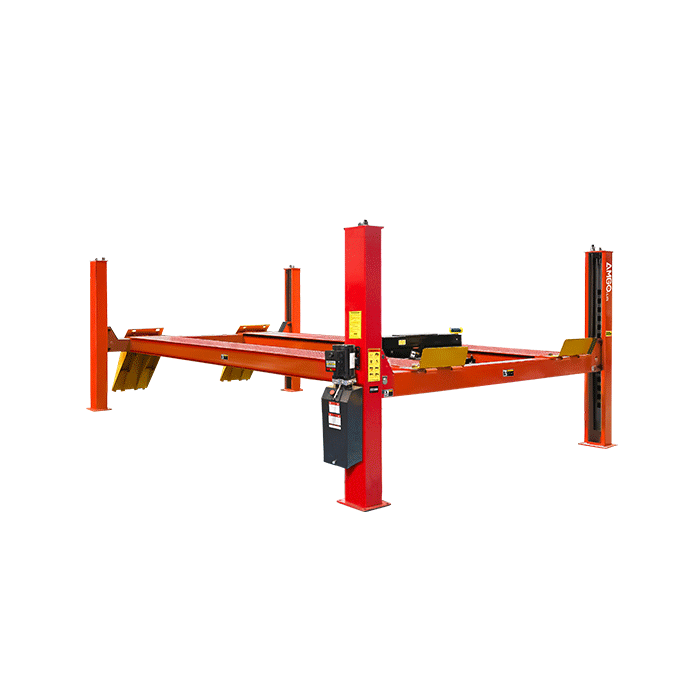

AMGO 30K - 4-POST SUPER DUTY STANDARD EXT RUNWAY LIFT
The PRO-30E, being 59″ longer than the PRO-30, enhances both performance and comfort when it comes to lifting vehicles of even greater length.
Click to download Product Manual
Features
• 30,000 lbs capacity, 59″ longer than PRO-30;
• AMGO ETL certified power unit comes as standard;
• Mechanical self-locking safety device with air-driven lock release;
• Both primary multiple safety locks and cable-slack protection system are equipped as standard;
• Cable-driven, utilizing aircraft standard high quality cables;
• Hydraulic cylinder is designed and made to high standard, utilizing high quality oil seals and compensation valve;
• Non-skid diamond platforms allow two width setting.
Specifications
| Model | PRO-30E | |
|---|---|---|
| Lifting Capacity | 30,000 Ibs | |
| Lifting Time | 133s | |
| Overall Length (Inc Ramps) | A | 366 1/8" |
| Outside Edge of Crossbeams | B | 307 1/16" |
| Overall Width | C | 147 9/16" |
| Width Between Columns | D | 130" |
| Max. Lifting Height | E | 75 3/16" |
| Max. Lock Height to top of runway | 72 1/16" | |
| Overall Height | F | 92" |
| Minimum Height | G | 10 1/4" |
| Max. Underneath Height | H | 66 5/16" |
| Max. Lock Underneath Runway | 63 3/16" | |
| Drive-Thru Clearance | I | 115 15/16" |
| Width Between Runways | J | 46" 54 1/16“ |
| Outside Edge of Runways | K | 94" 102 1/8” |
| Gross Weight | 6,860 lbs | |
| Motor | 2.0HP |
Detailed Image
Oil-water separator and solenoid air valve are installed on the power side column.
ETL certified AMGO power unit.
Primary multiple safety locks and cable-slack protection system come standard.
Hydraulic cylinder is designed and made to high standard, utilizing high quality oil seals and compensation valve.
Non-slip diamond platforms allow two-width setting.
Optional Air line kits All AMGO four post lifts are designed to use the air line kits for rolling jack. Kits No.:40106A
Optional Rolling Jacks RJ-20A: pneumatic hydraulic type, 20,000lbs capacity.
Shipping Information
1 units/package, packing measurement (LxWxH): 317 5/16" x 26"x 39 3/8". Packed with Power Unit.
2 units/package, packing measurement (LxWxH) : 317 5/16" x 26"x 78 3/4"
After the machine is pulled out from the container, use the forklift to lift the machine from the middle position.
Use a forklift to lift up one end of the machine about 2"-5" from the ground, and pull the machine out from the container with the assistance of lifting belt or other cables.
It is not allowed to use the forklift to lift the machine completely from one end, which will easily cause the machine to be deformation.
AMGO 5-3-2 Warranty: Industry-leading Service
AMGO Hydraulic Corporation offers one of the best warranties in the business with warranties as follows:
1. Steel Structure Components, Warranty for 5 Years;
2. Hydraulic Parts, Warranty for Three 3 Years:
3. Other Parts, electrical components, power unit, Warranty for 2 Years.
For detail warranty policy, please check here.
