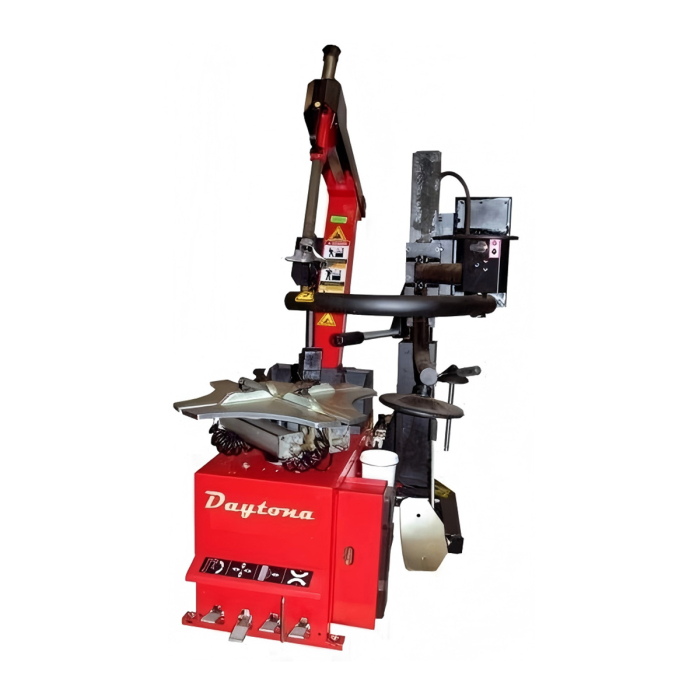

Daytona TC-890T Heavy Duty Tire Changer
The TC-890T is a heavy-duty pneumatic tire changer designed for high-volume shops. Engineered to handle stiff, wide, and low-profile tires without compromising rim integrity. Featuring a tilting column for faster setup and increased rigidity.
- Pneumatic tilting column and locking system for faster setup
- Oversized bead seating air blaster integrated into the jaws
- Powerful 2.75-ton pneumatic bead breaker system
- Full air preparation: lubricator, filter, water trap, and regulator
Power & Air
120V / 20A / 1Ph / 1.5 HP
120 - 145 PSI Requirement
Operational Footprint
66"W x 69"D x 79"H
| Specification | Measurement |
|---|---|
| Inside Clamping | 15" - 28" |
| Outside Clamping | 13" - 26" |
| Max Tire Diameter | 42" |
| Bead Breaker Force | 2500 kg (2.75 Tons) |
| Total Ship Weight | 950 lbs |
| Bead Breaker Force | 2.75 tons / 2500kg |
SHIPPING INFORMATION
- Body Weight Arm Weight Total Ship Weight 700 lbs 250 lbs 950 lbs
FAQ
What is the maximum rim clamping capacity?
The TC-890T can handle inside clamping from 15" to 28" and outside clamping from 13" to 26", making it versatile for everything from standard cars to large trucks.
Does it include protection for alloy wheels?
Yes, it comes standard with rim clamp protectors and dismount head protectors specifically designed to prevent scratches on delicate chrome and alloy rims.
What are the power requirements?
The machine requires a standard 120V / 20A / 1Ph / 60Hz electrical connection and a 120-145 PSI air supply.
