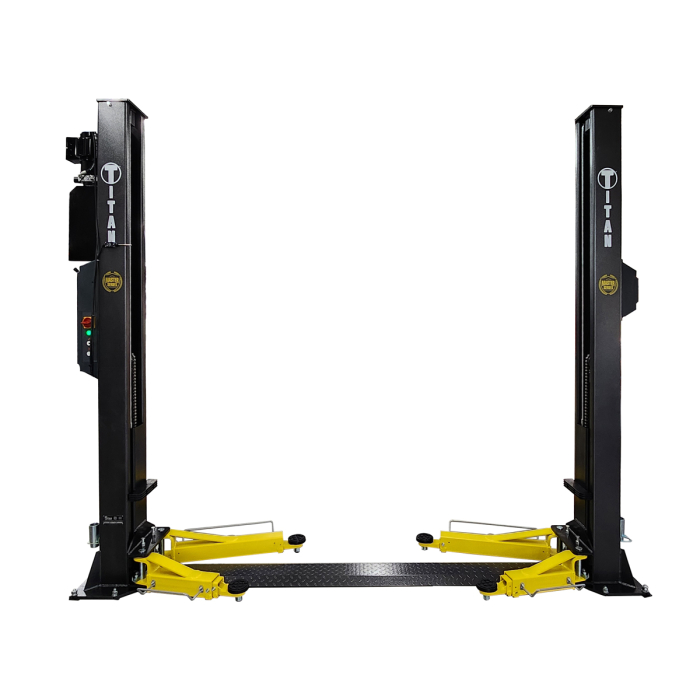

Titan Master Series HD2P-9KMSF 9,000lb Floorplate 2-Post Lift
Special Price
$2,350.00
Regular Price
$3,150.00
SKU
TTN*HD2P-9KMSF
- Power on Green LED
- Single button operation
- Included Electrical disconnect
- Single lever lowering
- Chain Over Roller Hydraulic Cylinders
- Serviceable Arm Restraint Locks
- Thread-up Lifting Pads
- Carriage Limit Switch
- 3-Stage Front Arms
- Single-Point Lock Release
- European Style Carriages
- 4” Truck Adapters
- Rubber Door Guards
- Steel Toe-guards
- Steel Hydraulic Oil Reservoir
- 5 Year Structural Warranty
- 2 Year Electric/Hydraulic Warranty
- Lifetime Warranty on Nylon Slide Blocks
- Durable Textured Powder-coated Finish
Specs
| Type | Floorplate / Asymmetric Arms |
|---|---|
| Lifting Capacity | 9,000lb |
| Lifting Time | 50-60 sec. |
| Column Height* | 112" *CARRIAGE LOCK LADDER WILL EXTEND 10” ABOVE TOP OF COLUMN WHEN RAISED TO MAX HEIGHT. |
| Overall Width | 134 1/4" |
| Width Between Posts | 111 1/2" |
| Drive-Thru | 100 3/4" |
| Low Pad Height | 3 3/4" |
| Lifting Height | 73” (80 1/4" using Truck Adapters with Pad Mounts threaded up) |
| Power Unit | 220V/1Ph/60Hz |
Shipping Info
| Shipping Length | 113" |
|---|---|
| Shipping Width | 22" |
| Shipping Height | 39" |
| Shipping Weight | 1,440 lb |
| Shipping Length | 113 |
|---|---|
| Shipping Width | 22 |
| Shipping Height | 39 |
