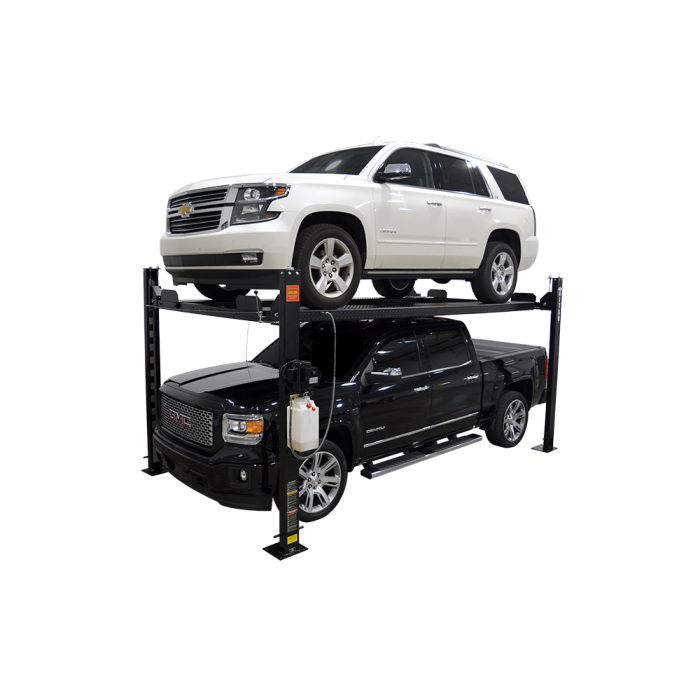

The Titan 4 post parking/storage lifts are ideal for automotive enthusiasts or
for those who just need extra space in their garage. They are heavy-duty, with
one-piece diamond-plated runways, 3 inch cylinder, and a durable
scratch-resistant, powder-coated, midnight black finish.
They come with a 110 Volt power unit that easily adapts to most residential
applications. The heavy-duty, multiple position locking mechanism and enclosed
carriage arms help to ensure maximum safety.The easy operation lock
handle is located by the power unit, minimizing any bending or squatting.
There are many options available to personalize the lift to your needs. These
rugged and versatile lifts are engineered and manufactured to the highest
quality standards to provide you years of trouble-free service.
Features
8,000 lb lifting capacity
Longer and more under-car clearance than our standard model
Aircraft quality cables rated at 14,500 lb
18-5/8" wide runways formed with one-piece 3/16" non-skid diamond plate
Single point safety lock release handle located near power unit
Primary locking system with secondary slack safety lock
Large 3" diameter cylinder
Powder coated in midnight black finish
Diamond plated steel approach ramps
1 Year Electric/Hydraulic Warranty
5 Year Structural Warranty
Included
Caster Kit
Jack tray
3 Drip Trays
Steel Ramps
Optional
Sliding Jacks Available
Aluminum Ramp Upgrade
SPECIFICATIONS
Center of Baseplates - Width
99-1/4"
Outside of Baseplates - Width
109-1/2"
Outside of Columns - Width
106-3/4"
Width Between Columns
100-3/8"
Overall Width w/Motor
120-3/4"
Drive-Thru
86-1/2"
Under Runway Clearance
77"
Between Runways
43-1/4"
Out to Out - Runways
80-3/4"
Length of Runway
180-1/2"
Width of Runway
18-5/8"
Total Length of Ramp
37"
Baseplate Dimensions
10-1/4" x 12"
Column Dimensions
3-1/4" x 6"
Center of Baseplates - Length
178-1/2"
Outside of Baseplates - Length
190-1/2"
Outside of Columns - Length
183-1/2"
Inside of Columns - Length
171"
Overall Length w/Ramps
226-1/2"
Lifting Height
4-3/4" - 82-1/4"
Overall Height
94-1/8"
Lifting Capacity
8,000 lb
Net Weight
1,753 lb
Power Unit
110V-120V, 60Hz, 3HP/Single Phase, 3 prong power plug, 20AMP
